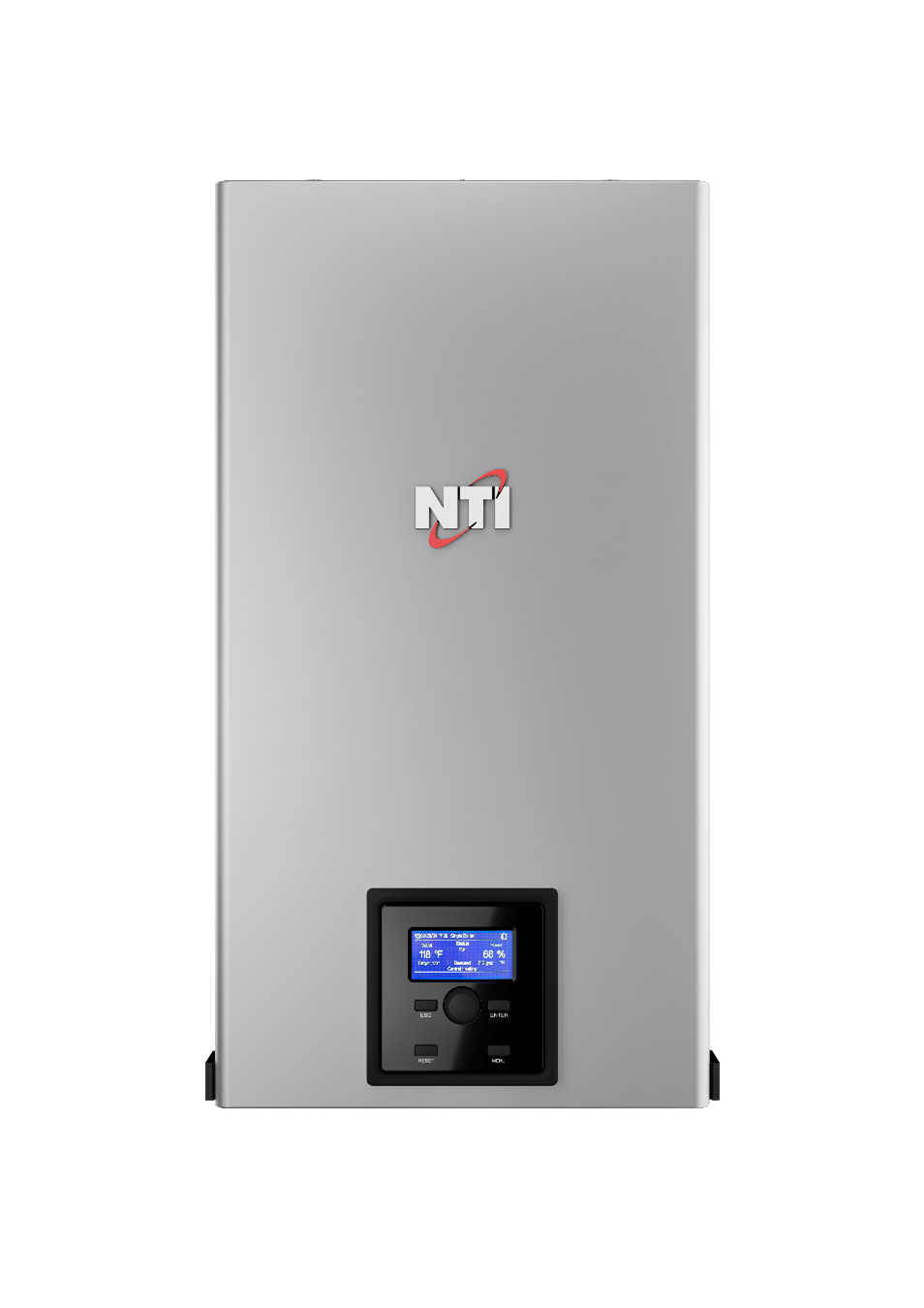

TRX SERIES II GAS-FIRED CONDENSING COMBI BOILER: TRX150C
150,000 BTU | Wall-Hung | 95% AFUE | Combi with DHW | ASME “H” Stamped
The TRX150C Series II combines high-output space heating with on-demand domestic hot water in a single, compact wall-hung unit.
With a maximum input of 150,000 BTU and a 95% AFUE efficiency rating, the TRX150C provides consistent comfort, energy savings, and reliable performance.
Built with a robust 441 stainless steel watertube heat exchanger and ASME “H” stamp certification, it delivers durability and safe operation.
Integrated Wi-Fi smart controls allow remote system monitoring and management for added convenience.
Energy Efficiency
The TRX150C ensures maximum performance while minimizing energy usage:
- 95% AFUE seasonal efficiency.
- 10:1 modulation ratio for precise load control.
- Outdoor reset sensor included for adaptive heating control.
- Eco-friendly, low NOx emissions.
Reliable Function
Designed with advanced technology and premium components for long-term dependability:
- ASME “H” stamped 441 stainless-steel watertube heat exchanger.
- Integrated ECM boiler circulator and 3-way diverter valve.
- Automatic diagnostics with error history and lockout protection.
- Quiet, sealed cabinet design for safe operation.
Convenience & Installation
Flexible installation and simple maintenance features:
- Wall-mounted design with zero clearance to combustibles.
- Fast commissioning with built-in Setup Wizard.
- Wi-Fi enabled smart controls with mobile monitoring.
- Integrated domestic hot water plate heat exchanger with serviceable filter.
Warranty Coverage
Backed by NTI’s comprehensive warranty, the TRX150C includes long-term coverage for the stainless steel heat exchanger
and major components, ensuring peace of mind and dependable service.
| Item | Parameter |
|---|---|
| Product | TRX150C Series II (Combi) |
| Input Rating (CH) | 13.2 – 120 MBH |
| Input Rating (DHW) | 13.2 – 150 MBH |
| Heating Capacity | 111 MBH |
| Net AHRI Rating | 97 MBH |
| AFUE | 95% |
| Modulation Ratio | 10:1 |
| Boiler Setpoint | 68–179°F (20–82°C) |
| DHW Temperature Range | 97–140°F (36–60°C) |
| Max Water Pressure (CH) | 50 psi |
| Max Water Pressure (DHW) | 150 psi |
| Gas Supply Pressure (NG) | 3.5 – 10.5 in. W.C. |
| Gas Supply Pressure (LP) | 8 – 13 in. W.C. |
| Heat Exchanger | 441 Stainless Steel, Watertube |
| DHW Flow (35°F Rise) | 7.8 GPM |
| DHW Flow (45°F Rise) | 6.1 GPM |
| Dimensions & Weight | |
| Height | 35.4 in. (900 mm) |
| Width | 17.3 in. (440 mm) |
| Depth | 15.6 in. (395 mm) |
| Weight | 128 lb (58 kg) |
NTI-TRX-Series-II-Brochure-Comp
NTI-TRX-Series-II-Brochure-Comp-FR
TRX Series II Installation and Operation Manual TRX085:110C:120:150C
TRX Series II Installation and Operation Manual TRX085:110C:120:150C-FR
TRX Series II Installation and Operation Manual TRX150:199:199C
TRX Series II Installation and Operation Manual TRX150:199:199C-FR.pdf
TRX Series II Error Codes
-
Blocking Errors – Temporary interruptions that auto-clear when the fault condition is removed.
Examples: 110 – Supply Sensor Fault, 132 – Return Sensor Fault, 133 – DHW Sensor Fault, 108 – Pump Antifreeze Run. -
Lockout Errors – Critical issues that require manual reset via the Reset button.
Examples: 501 – Ignition Failed, 502 – Flame Lost, 103 – Overheating (>210°F), 104 – Low Water Pressure. -
Malfunction Warnings – Non-critical alerts indicating maintenance/service is required.
Examples: 201 – Flue Sensor Fault, 202 – Air Pressure Switch Error, 203 – Fan Speed Error, 204 – Gas Valve Error.
⚠️ If lockout errors occur frequently, contact a qualified service technician. For safety, the boiler allows only 5 resets within 15 minutes; a 6th attempt locks the unit until power is cycled.
