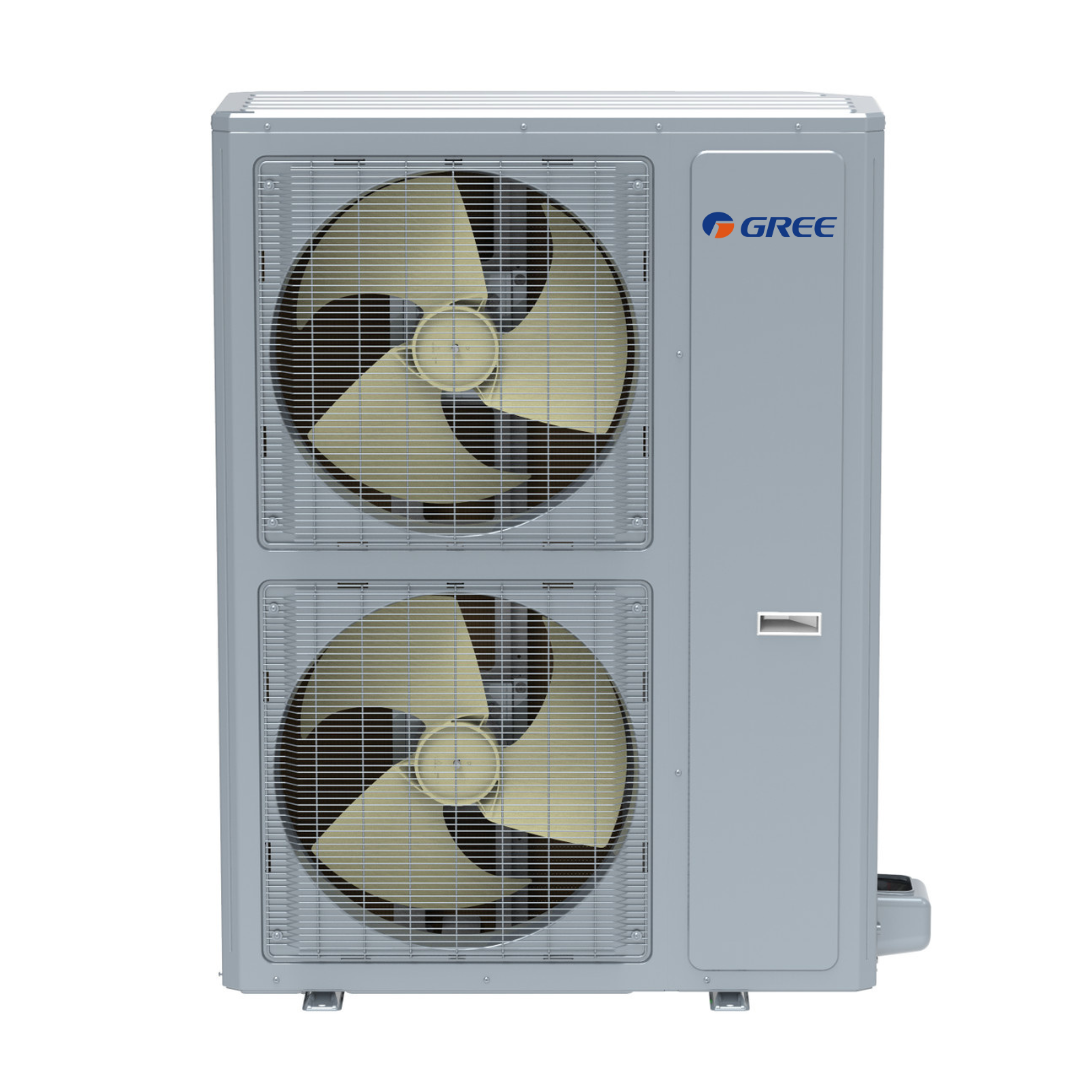

SUBMITTAL DATA FlEXX SERIES: GUD60W/A-D(U)
The Ducted Central Heat Pump, an energy-efficient heating solution that tackles the challenges of cold weather. Developed by GREE, it utilizes state-of-the-art technology to deliver powerful heating capacity even in outdoor temperatures as low as -30°C. Perfect for harsh Canadian winters, it helps curb climate change while providing optimal comfort.
Energy Efficiency



Home Comfort


Convenient Operation



Reliable Function


Warranty Coverage
Airtek/GREE's proudly backs all their models with a robust manufacturer's warranty. This comprehensive warranty spans an impressive 10+2 years, safeguarding your investment. Rest assured, any warranty claims you may have will be efficiently handled by Airtek/GREE's, guaranteeing top-tier customer support and satisfaction. The 10+2 years warranty encompasses the compressor, while other parts enjoy coverage for 5 years. With this warranty, you can trust in the long-term protection of your purchase, ensuring you receive the utmost quality.
| Item | Parameter |
|---|---|
| Model | GUD60W/A-D(U) |
| Performance | |
| Cooling Capacity | 57000 Btu/h |
| Heating Capacity | 57000 Btu/h |
| Power Supply | 208/230V/1Ph/60Hz |
| Sound Pressure Level | 58 dB(A) |
| Energy Efficiency | |
| SEER | 17.5 Unit |
| EER | 10 Unit |
| HSPF | 9.5 Unit |
| Electrical Data | |
| Minimum - Maximum Voltage | 187-253 V |
| Control Voltage | 24 V |
| Rated Current Cooling | 25 A |
| Rated Current Heating | 25 A |
| MCA | 39 A |
| MOP | 60 A |
| Dimension/Weight | |
| External Dimensions (HxWxD) | 940x320√†√∂â àöâ •1430/ (37√†√∂â àöâ •12-3/5√†√∂â àöâ •56-3/10) mm/inch |
| Net Weight | 137.77 / 304 kg/lbs |
| Gross Weight | 148.64 / 328 kg/lbs |
| Refrigerant Piping | |
| Gas Pipe | 3/4 m/ft |
| Liquid Pipe | 9.5/(3/8) m/ft |
| Standard Pipe Length | 7.62/25 m/ft |
| Max refrigerant pipe length between Indoor and Outdoor (m) | 49.98/164 m/ft |
| Max vertical height difference between Indoor and Outdoor (m) | 15.24/ 50 m/ft |
| Other | |
| Connection Method | Flare/Screw |
| Refrigerant Type | R410A |
| Precharge Refrigerant | 5.5/197 kg/oz |
| Operation temperature for cooling | C/F |
| Operation temperature for heating | C/F |
