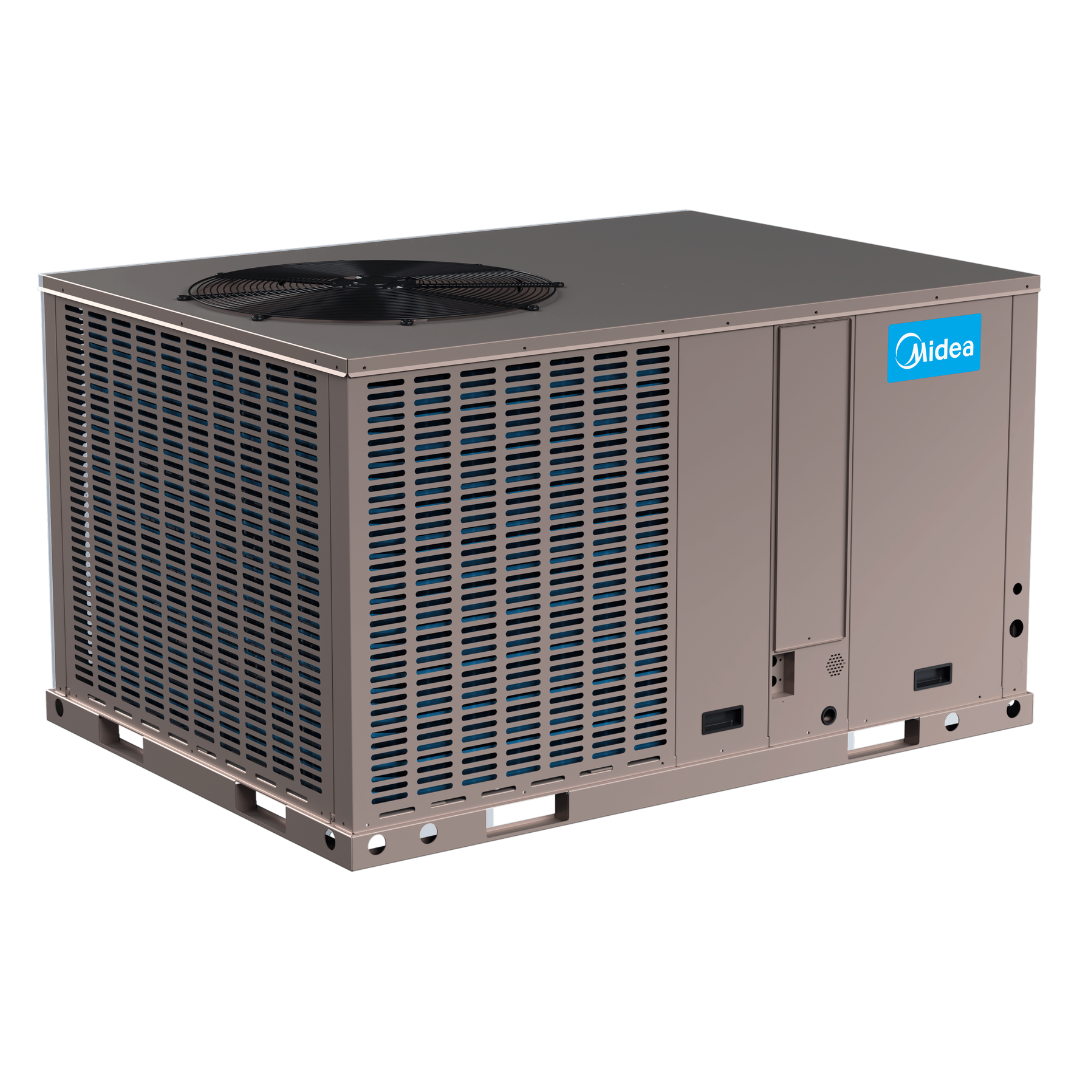

MRC-M134H SERIES: PACKAGED HEAT PUMPS, 13.4 SEER2, 2-5 TON
The MRC-M134H Series Packaged Heat Pumps are designed to provide efficient and reliable heating and cooling solutions. With a 13.4 SEER2 rating, these units are engineered for optimal performance in various conditions, featuring quiet horizontal discharge and a durable, power-painted galvanized steel cabinet.
Energy Efficiency
- Featuring high-efficiency compressors that operate smoothly, quietly, and consistently, ensuring excellent energy savings.
- Each unit comes with internal safeguards to protect the compressor against high and low pressure and coil temperature, enhancing the system's reliability and longevity.
Advanced Features for Optimal Comfort
- Copper tube/aluminum fin coil provides exceptional heat transfer and efficiency.
- Optional electric heat kit available for installation, offering additional heating capacities of 5/8/10/15/20kW for versatility across different climates.
Reliable and Quiet Operation
- Designed for quiet horizontal discharge to minimize noise, making the outdoor environment more comfortable.
- High efficiency ECM blower motor available in select models for improved airflow and reduced energy consumption.
Trusted Certifications
Our MRC-M134H Series Packaged Heat Pumps are AHRI Certified and ETL listed, assuring quality, safety, and performance standards are met, providing peace of mind and reliability you can trust.
| Item | Parameter |
|---|---|
| Cooling Capacity | 24,000 to 60,000 BTU/h |
| Voltage / Phase | 208/230V, 1 Phase |
| Heating Capacity | Depends on model, with options ranging from 2 to 5 tons |
| SEER2 Rating | 13.4 |
| Cabinet Material | Power-painted galvanized steel |
| Heat Kit Options | 5/8/10/15/20 kW |
| Blower Motor Type | High efficiency ECM (select models) |
| Coil Type | Copper tube / aluminum fin |
| Certifications | AHRI Certified, ETL listed |
Midea Error Codes
- E3 - Combined water outlet temperature sensor error
- E4 - Water outlet temperature sensor error
- 1E5 - Air side heat exchanger refrigerant outlet temperature sensor T3A error
- E7 - Outdoor ambient temperature sensor error
- 2Eb - Water side heat exchanger anti-freezing temperature sensor Taf2 error
- 1Ed - Discharge pipe temperature sensor of system A error
- 2Ed - Discharge pipe temperature sensor of system B error
- EF - Water inlet temperature sensor error
- EP - Discharge pipe temperature sensor failure alarm
- EU - Air side heat exchanger refrigerant total outlet temperature sensor Tz/7 error
- 1F9 - Inverter module temperature sensor (Tfin1) error
- 2F9 - Inverter module temperature sensor (Tfin2) error
- Fb - Pressure sensor error
- Fd - Air suction temperature sensor error
- All stop running
- Error code is displayed on main PCB and user interface
