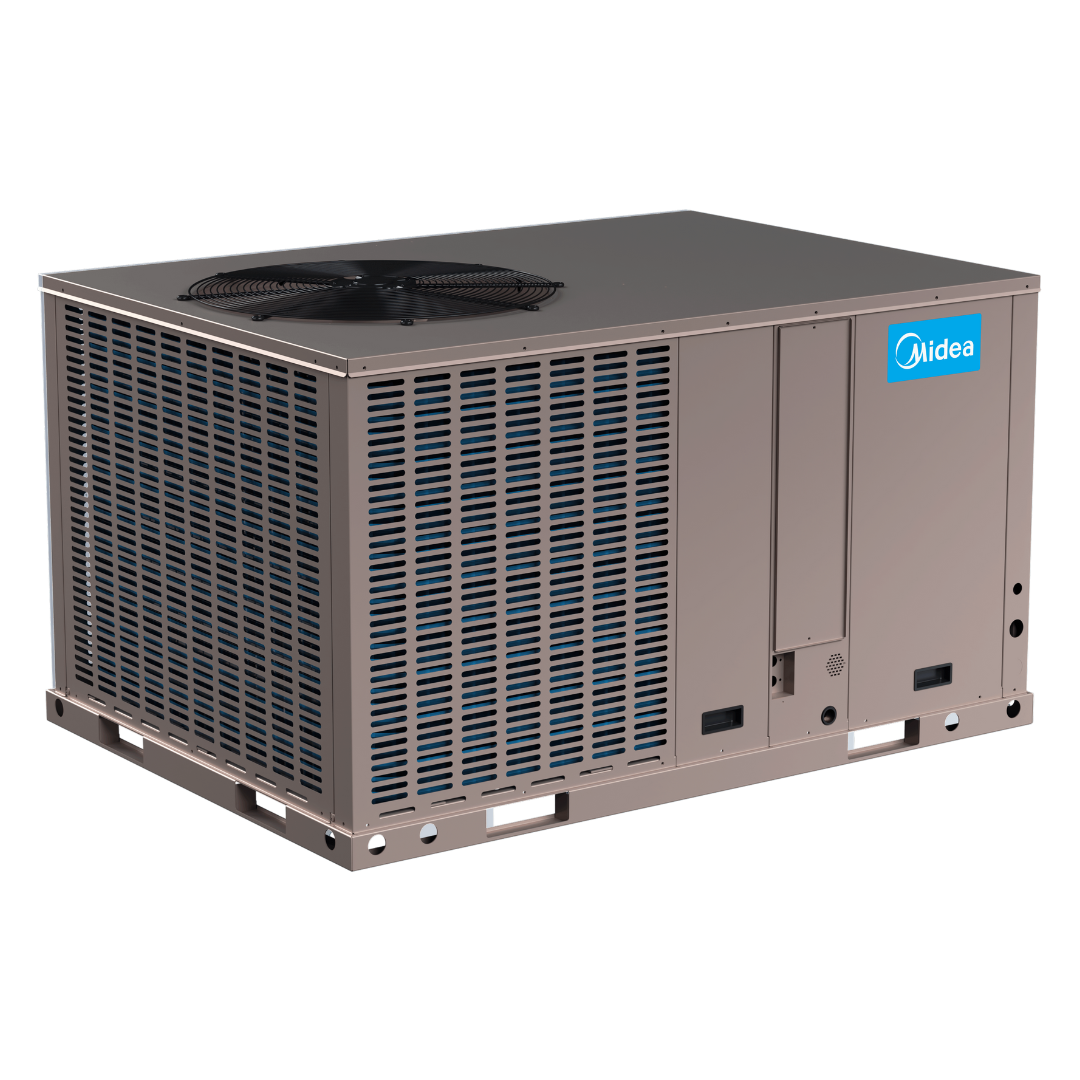

MRC-M134H SERIES: PACKAGED HEAT PUMPS, 13.4 SEER2, 2-5 TON

The MRC-M134H Series Packaged Heat Pumps are designed to provide efficient and reliable heating and cooling solutions. With a 13.4 SEER2 rating, these units are engineered for optimal performance in various conditions, featuring quiet horizontal discharge and a durable, power-painted galvanized steel cabinet.

Energy Efficiency

  • Featuring high-efficiency compressors that operate smoothly, quietly, and consistently, ensuring excellent energy savings.
  • Each unit comes with internal safeguards to protect the compressor against high and low pressure and coil temperature, enhancing the system's reliability and longevity.

Advanced Features for Optimal Comfort

  • Copper tube/aluminum fin coil provides exceptional heat transfer and efficiency.
  • Optional electric heat kit available for installation, offering additional heating capacities of 5/8/10/15/20kW for versatility across different climates.

Reliable and Quiet Operation

  • Designed for quiet horizontal discharge to minimize noise, making the outdoor environment more comfortable.
  • High efficiency ECM blower motor available in select models for improved airflow and reduced energy consumption.

Trusted Certifications

Our MRC-M134H Series Packaged Heat Pumps are AHRI Certified and ETL listed, assuring quality, safety, and performance standards are met, providing peace of mind and reliability you can trust.

Item Parameter
Cooling Capacity 24,000 to 60,000 BTU/h
Voltage / Phase 208/230V, 1 Phase
Heating Capacity Depends on model, with options ranging from 2 to 5 tons
SEER2 Rating 13.4
Cabinet Material Power-painted galvanized steel
Heat Kit Options 5/8/10/15/20 kW
Blower Motor Type High efficiency ECM (select models)
Coil Type Copper tube / aluminum fin
Certifications AHRI Certified, ETL listed

Midea Error Codes

  • E3 - Combined water outlet temperature sensor error
  • E4 - Water outlet temperature sensor error
  • 1E5 - Air side heat exchanger refrigerant outlet temperature sensor T3A error
  • E7 - Outdoor ambient temperature sensor error
  • 2Eb - Water side heat exchanger anti-freezing temperature sensor Taf2 error
  • 1Ed - Discharge pipe temperature sensor of system A error
  • 2Ed - Discharge pipe temperature sensor of system B error
  • EF - Water inlet temperature sensor error
  • EP - Discharge pipe temperature sensor failure alarm
  • EU - Air side heat exchanger refrigerant total outlet temperature sensor Tz/7 error
  • 1F9 - Inverter module temperature sensor (Tfin1) error
  • 2F9 - Inverter module temperature sensor (Tfin2) error
  • Fb - Pressure sensor error
  • Fd - Air suction temperature sensor error
  • All stop running
  • Error code is displayed on main PCB and user interface
