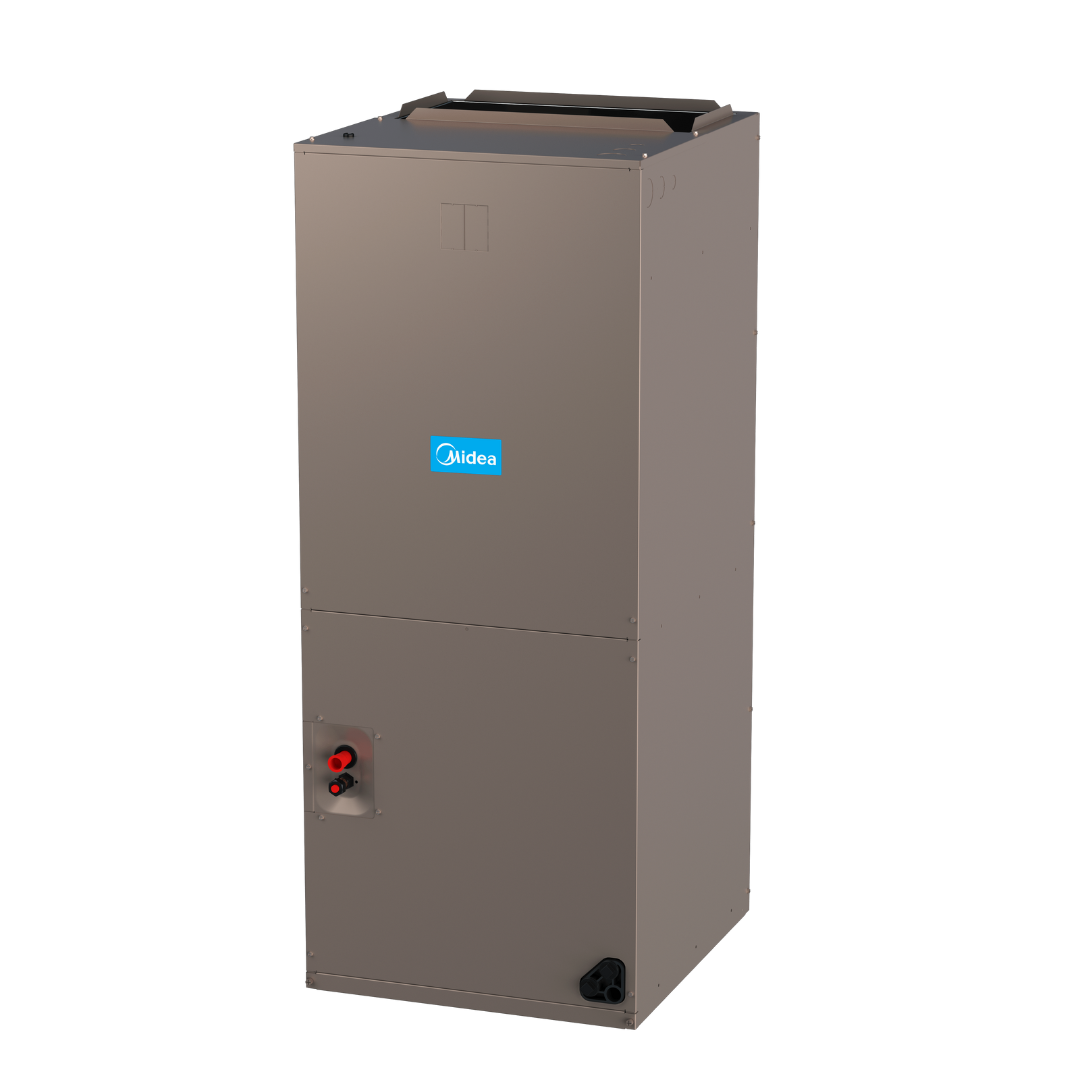

MVMP SERIES: MULTI-POSITION AIR HANDLER, 1.5-5 TON
The MVMP Series Air Handlers, designed for both cooling and heat pump applications, are engineered to provide flexible and efficient air distribution. Featuring multi-speed ECM blower motors and all-aluminum tubes & fins, these units are optimized for performance and durability. The factory-sealed cabinet is certified to achieve a leakage rate of 2% or less at 1.0 inch water column, ensuring efficient operation.
Efficient Design
- With multi-position installation flexibility, the MVMP series adapts easily to various site conditions, offering both horizontal and vertical condensate drain pans as standard.
- Field-installed heater kits ranging from 5 to 20 kW are optional, providing additional heating capacity for diverse application needs.
Easy Maintenance
- The blower and coil are designed to slide out easily, facilitating maintenance and ensuring long-term performance.
- These air handlers are AHRI Listed and ETL Certified, meeting stringent quality and performance standards.
| Item | Parameter |
|---|---|
| Model | MVMP18A1MN1OC / MVMP24B1MN1OC / MVMP36B1MN1OC / MVMP48C1MN1OC / MVMP60C1MN1OC |
| Cooling Capacity | 18,000 - 60,000 Btu/h |
| Fan Motor Type | PSC |
| Voltage / Phase | 208/230V, 1 Ph, 60Hz |
| External Static Pressure | 0.6 - 0.8 in.w.c. |
| Min. Circuit Amps | 1.9 - 5.7 A |
| Max. Overcurrent Protection | 15 A |
| Horsepower (HP) | 1/5 - 3/4 HP |
| Rated RPM | 755 - 990 RPM |
| Full Load Amps (FLA) | 1.5 - 4.5 A |
| Fan Blower Material | Metal |
| Fan Blower Type | Centrifugal |
| Evaporator Coil Type | Tube & Fin |
| Tube Material | Aluminum |
| Refrigerant Connection Size - Liquid Line | 3/8 O.D. |
| Refrigerant Connection Size - Suction Line | 3/4 - 7/8 O.D. |
| Dimensions (HxWxD) inches | 41-3/8 x 18-1/8 x 20-1/2 to 54-1/2 x 22 x 24 |
| Weight | 108 - 161 lbs |
Midea Error Codes
- E3 - Combined water outlet temperature sensor error
- E4 - Water outlet temperature sensor error
- 1E5 - Air side heat exchanger refrigerant outlet temperature sensor T3A error
- E7 - Outdoor ambient temperature sensor error
- 2Eb - Water side heat exchanger anti-freezing temperature sensor Taf2 error
- 1Ed - Discharge pipe temperature sensor of system A error
- 2Ed - Discharge pipe temperature sensor of system B error
- EF - Water inlet temperature sensor error
- EP - Discharge pipe temperature sensor failure alarm
- EU - Air side heat exchanger refrigerant total outlet temperature sensor Tz/7 error
- 1F9 - Inverter module temperature sensor (Tfin1) error
- 2F9 - Inverter module temperature sensor (Tfin2) error
- Fb - Pressure sensor error
- Fd - Air suction temperature sensor error
- All stop running
- Error code is displayed on main PCB and user interface
