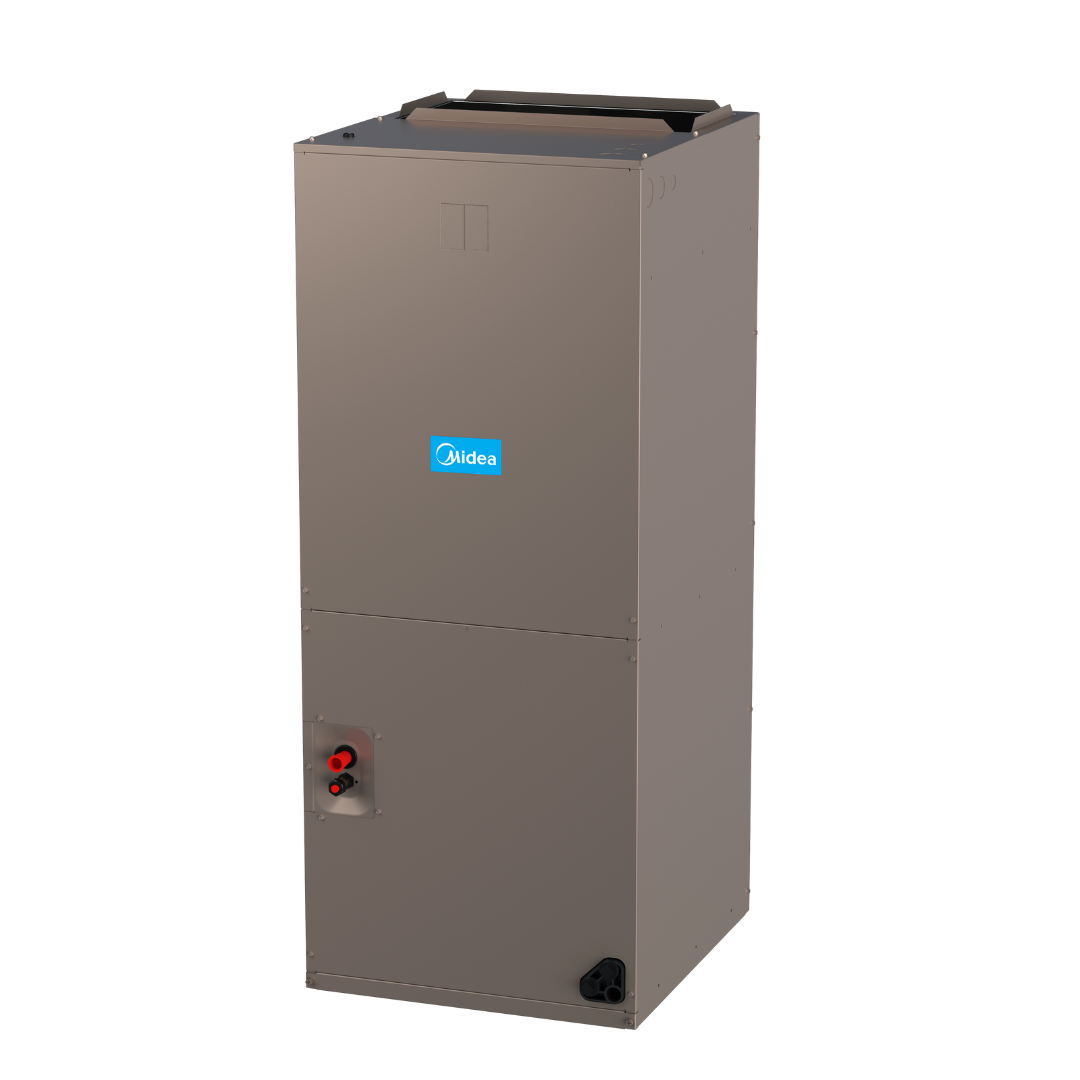

Midea MVMP SERIES: MULTI-POSITION AIR HANDLER, 4 TON

MVMP SERIES: MULTI-POSITION AIR HANDLER, 1.5-5 TON The MVMP Series Air Handlers, designed for both cooling and...
Vendor: Midea
SKU: MVMP48C1MN1OC
Availability: Out Of Stock
Please login to see the price
Please login to see the price
Please hurry! Only 0 left in stock
10 customers are viewing this product

MVMP SERIES: MULTI-POSITION AIR HANDLER, 1.5-5 TON

The MVMP Series Air Handlers, designed for both cooling and heat pump applications, are engineered to provide flexible and efficient air distribution. Featuring multi-speed ECM blower motors and all-aluminum tubes & fins, these units are optimized for performance and durability. The factory-sealed cabinet is certified to achieve a leakage rate of 2% or less at 1.0 inch water column, ensuring efficient operation.

Efficient Design

  • With multi-position installation flexibility, the MVMP series adapts easily to various site conditions, offering both horizontal and vertical condensate drain pans as standard.
  • Field-installed heater kits ranging from 5 to 20 kW are optional, providing additional heating capacity for diverse application needs.

Easy Maintenance

  • The blower and coil are designed to slide out easily, facilitating maintenance and ensuring long-term performance.
  • These air handlers are AHRI Listed and ETL Certified, meeting stringent quality and performance standards.

Item Parameter
Model MVMP18A1MN1OC / MVMP24B1MN1OC / MVMP36B1MN1OC / MVMP48C1MN1OC / MVMP60C1MN1OC
Cooling Capacity 18,000 - 60,000 Btu/h
Fan Motor Type PSC
Voltage / Phase 208/230V, 1 Ph, 60Hz
External Static Pressure 0.6 - 0.8 in.w.c.
Min. Circuit Amps 1.9 - 5.7 A
Max. Overcurrent Protection 15 A
Horsepower (HP) 1/5 - 3/4 HP
Rated RPM 755 - 990 RPM
Full Load Amps (FLA) 1.5 - 4.5 A
Fan Blower Material Metal
Fan Blower Type Centrifugal
Evaporator Coil Type Tube & Fin
Tube Material Aluminum
Refrigerant Connection Size - Liquid Line 3/8 O.D.
Refrigerant Connection Size - Suction Line 3/4 - 7/8 O.D.
Dimensions (HxWxD) inches 41-3/8 x 18-1/8 x 20-1/2 to 54-1/2 x 22 x 24
Weight 108 - 161 lbs

Midea Error Codes

  • E3 - Combined water outlet temperature sensor error
  • E4 - Water outlet temperature sensor error
  • 1E5 - Air side heat exchanger refrigerant outlet temperature sensor T3A error
  • E7 - Outdoor ambient temperature sensor error
  • 2Eb - Water side heat exchanger anti-freezing temperature sensor Taf2 error
  • 1Ed - Discharge pipe temperature sensor of system A error
  • 2Ed - Discharge pipe temperature sensor of system B error
  • EF - Water inlet temperature sensor error
  • EP - Discharge pipe temperature sensor failure alarm
  • EU - Air side heat exchanger refrigerant total outlet temperature sensor Tz/7 error
  • 1F9 - Inverter module temperature sensor (Tfin1) error
  • 2F9 - Inverter module temperature sensor (Tfin2) error
  • Fb - Pressure sensor error
  • Fd - Air suction temperature sensor error
  • All stop running
  • Error code is displayed on main PCB and user interface

Error Documentation

Midea Error Codes
