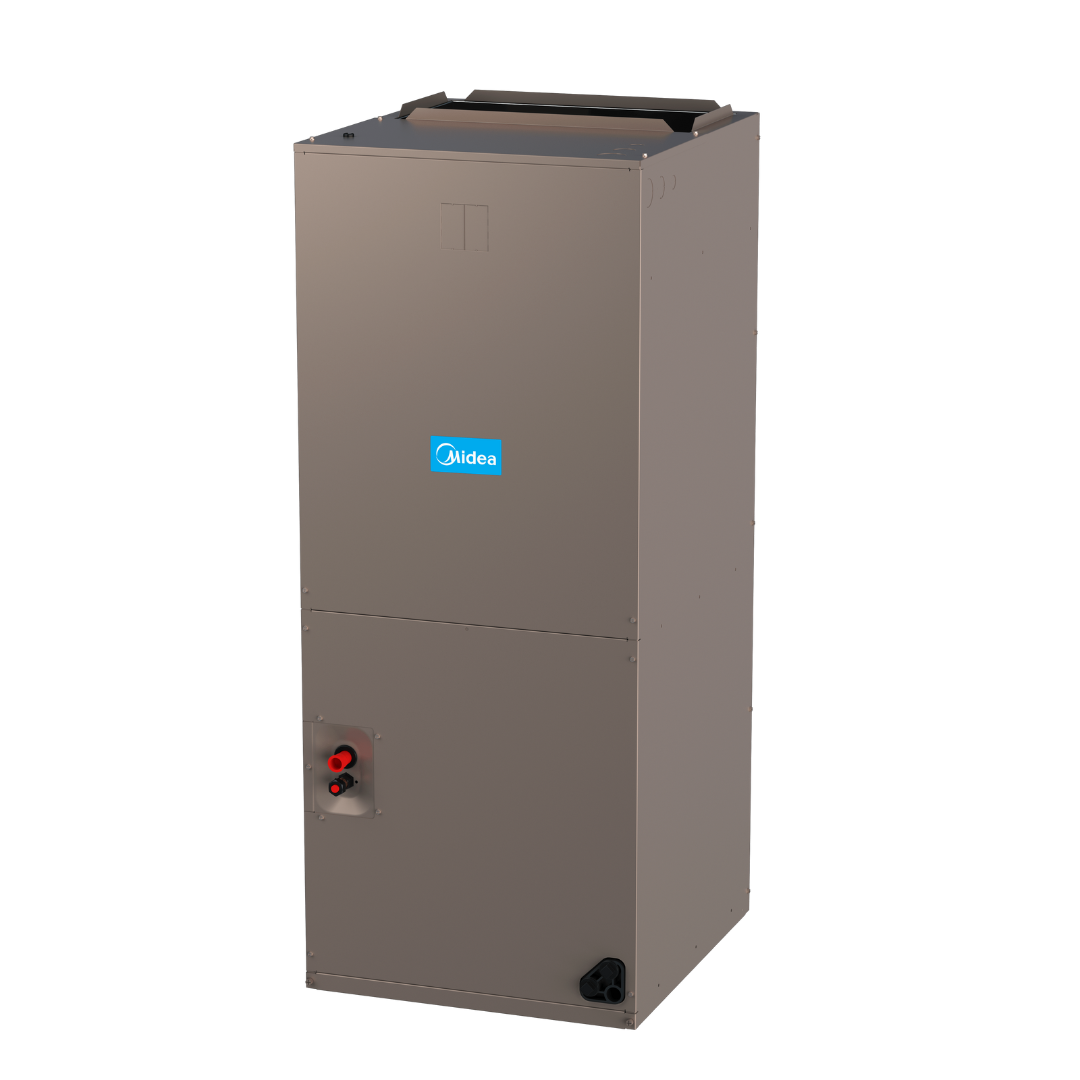

MVMP SERIES: MULTI-POSITION AIR HANDLER, 1.5-5 TON
The MVMP Series Air Handlers, designed for both cooling and heat pump applications, are engineered to provide flexible and efficient air distribution. Featuring multi-speed ECM blower motors and all-aluminum tubes & fins, these units are optimized for performance and durability. The factory-sealed cabinet is certified to achieve a leakage rate of 2% or less at 1.0 inch water column, ensuring efficient operation.
Efficient Design
Easy Maintenance
Item | Parameter |
---|---|
Model | MVMP18A1MN1OC / MVMP24B1MN1OC / MVMP36B1MN1OC / MVMP48C1MN1OC / MVMP60C1MN1OC |
Cooling Capacity | 18,000 - 60,000 Btu/h |
Fan Motor Type | PSC |
Voltage / Phase | 208/230V, 1 Ph, 60Hz |
External Static Pressure | 0.6 - 0.8 in.w.c. |
Min. Circuit Amps | 1.9 - 5.7 A |
Max. Overcurrent Protection | 15 A |
Horsepower (HP) | 1/5 - 3/4 HP |
Rated RPM | 755 - 990 RPM |
Full Load Amps (FLA) | 1.5 - 4.5 A |
Fan Blower Material | Metal |
Fan Blower Type | Centrifugal |
Evaporator Coil Type | Tube & Fin |
Tube Material | Aluminum |
Refrigerant Connection Size - Liquid Line | 3/8 O.D. |
Refrigerant Connection Size - Suction Line | 3/4 - 7/8 O.D. |
Dimensions (HxWxD) inches | 41-3/8 x 18-1/8 x 20-1/2 to 54-1/2 x 22 x 24 |
Weight | 108 - 161 lbs |
