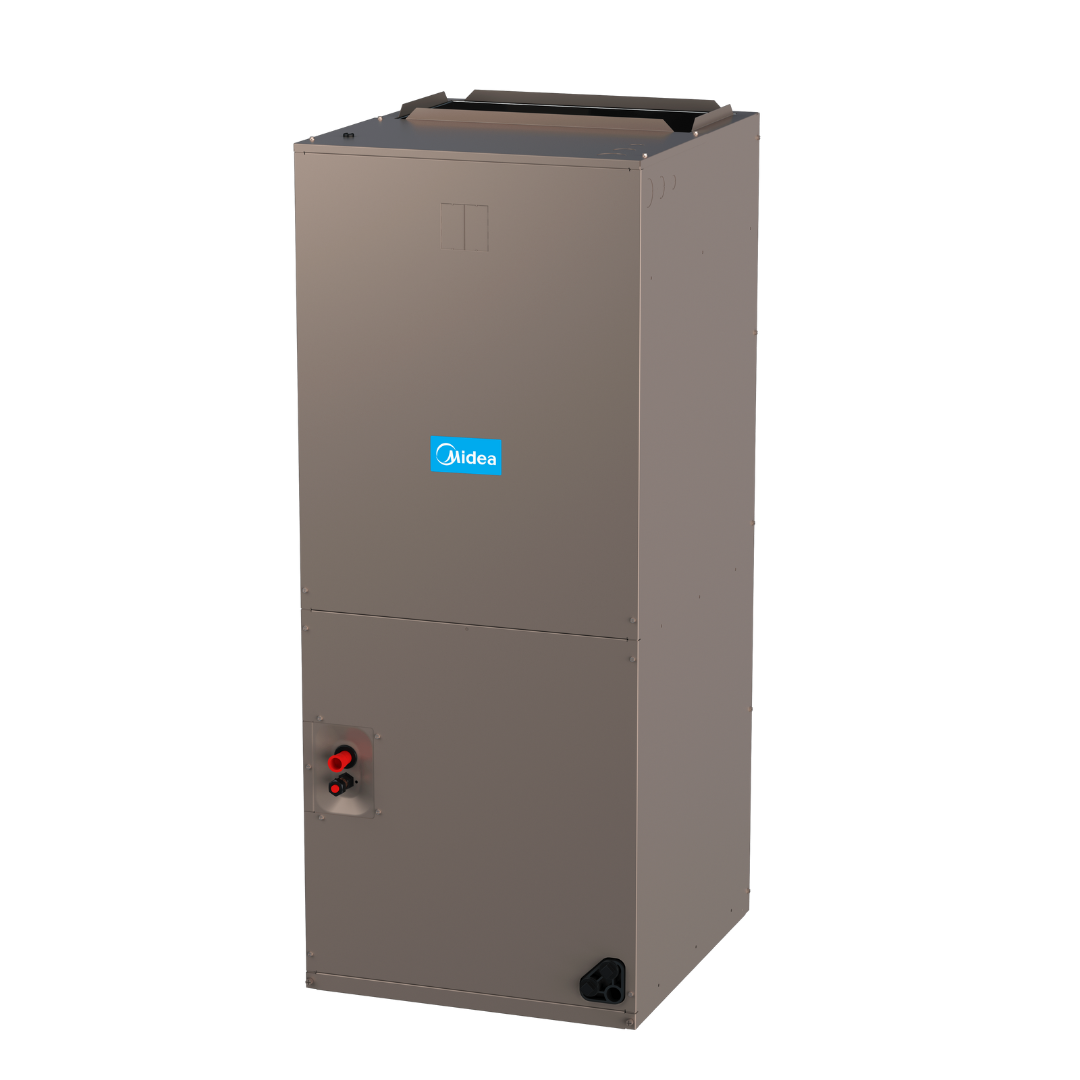

Midea MVME SERIES: VARIABLE SPEED AIR HANDLER, 5 TON

MVME SERIES: VARIABLE SPEED AIR HANDLER, 1.5-5 TON Introducing the MVME Series Air Handlers, an advanced climate...
Vendor: Midea
SKU: MVME60C1MN1OC
Availability: Out Of Stock
Please login to see the price
Please login to see the price
Please hurry! Only 0 left in stock
10 customers are viewing this product

MVME SERIES: VARIABLE SPEED AIR HANDLER, 1.5-5 TON

Introducing the MVME Series Air Handlers, an advanced climate control solution designed for maximum efficiency and adaptability. With a focus on variable speed ECM blower motors and all-aluminum tubes & fins, these units offer exceptional performance in both cooling and heat pump applications. The MVME Series stands out with its factory-sealed cabinet, certified to achieve a leakage rate of 2% or less at 1.0 inch water column, and its versatility for multi-position installation.

Advanced Efficiency

  • Designed for both cooling and heat pump applications, the MVME series ensures a seamless integration into any HVAC system, providing efficient air distribution.
  • The all-aluminum coil enhances heat transfer efficiency while minimizing the potential for leaks, ensuring long-term reliability and performance.

User-Friendly Design

  • Easy maintenance is guaranteed with the blower and coil's slide-out design, which allows for quick access and servicing without the need for extensive disassembly.
  • Field-installed heater kits, ranging from 5 to 20 kW, provide additional heating capacity, making the MVME series adaptable to a wide range of climate needs.

Item Parameter
Model MVME24A1MN1OC / MVME36B1MN1OC / MVME60C1MN1OC / MVME61C1MN1TC
Cooling Capacity 24,000 - 60,000 Btu/h
Voltage / Phase 208/230V, 1 Ph, 60Hz
External Static Pressure 0.7 - 0.8 in.w.c.
Fan Motor Type ECM
Rated RPM 1050 RPM
Full Load Amps (FLA) 2.6 - 4.5 A
Fan Blower Material Metal
Fan Blower Type Centrifugal
Evaporator Coil Type Tube & Fin
Tube Material Aluminum
Refrigerant Connection Size - Liquid Line 3/8 O.D.
Refrigerant Connection Size - Suction Line 3/4 - 7/8 O.D.
Dimensions (HxWxD) inches 41-3/8 x 18-1/8 x 20-1/2 to 54-1/2 x 22 x 24
Weight 101 - 161 lbs

Midea Error Codes

  • E3 - Combined water outlet temperature sensor error
  • E4 - Water outlet temperature sensor error
  • 1E5 - Air side heat exchanger refrigerant outlet temperature sensor T3A error
  • E7 - Outdoor ambient temperature sensor error
  • 2Eb - Water side heat exchanger anti-freezing temperature sensor Taf2 error
  • 1Ed - Discharge pipe temperature sensor of system A error
  • 2Ed - Discharge pipe temperature sensor of system B error
  • EF - Water inlet temperature sensor error
  • EP - Discharge pipe temperature sensor failure alarm
  • EU - Air side heat exchanger refrigerant total outlet temperature sensor Tz/7 error
  • 1F9 - Inverter module temperature sensor (Tfin1) error
  • 2F9 - Inverter module temperature sensor (Tfin2) error
  • Fb - Pressure sensor error
  • Fd - Air suction temperature sensor error
  • All stop running
  • Error code is displayed on main PCB and user interface

Error Documentation

Midea Error Codes
