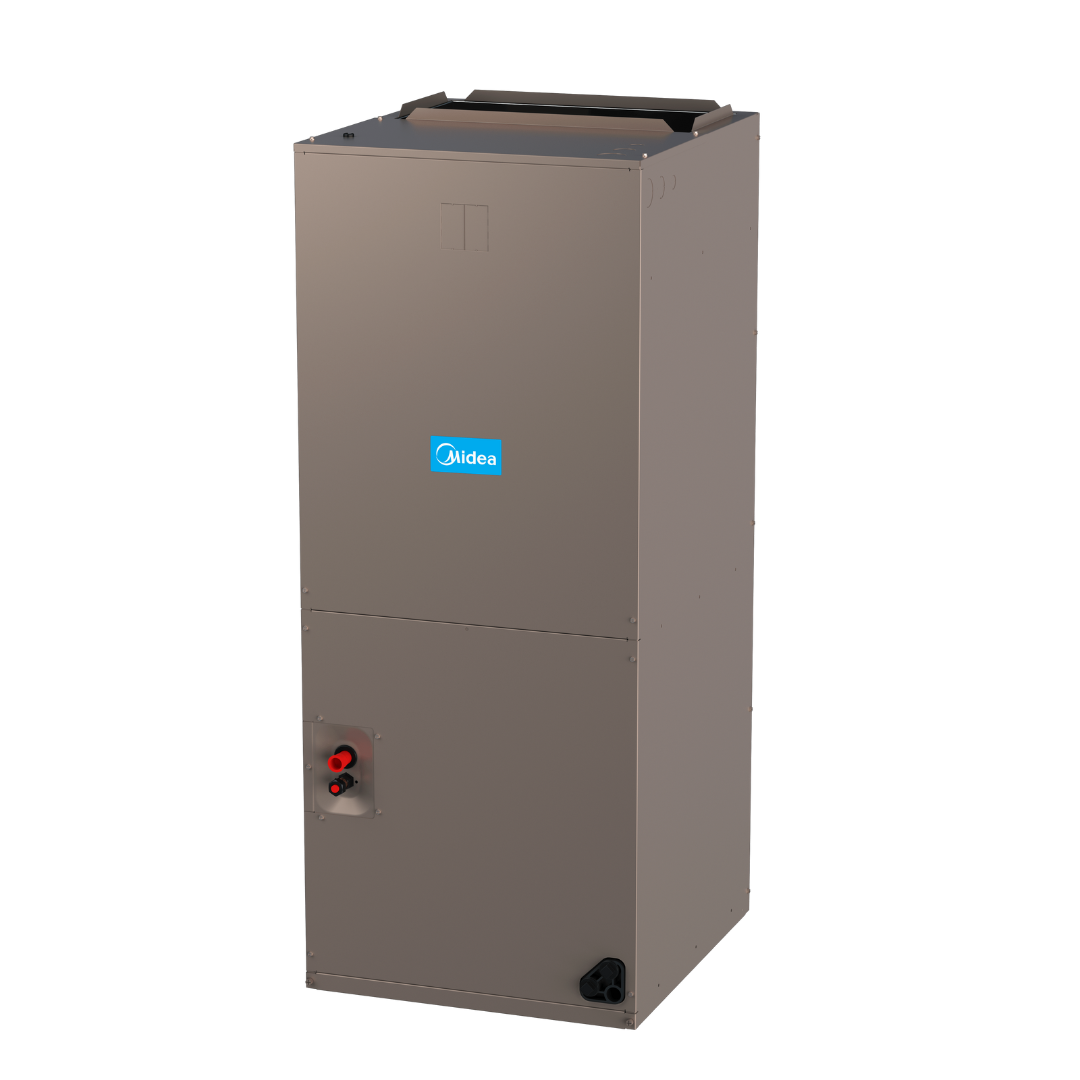

MVME SERIES: ECM AHU (TXV built-in) AIR HANDLER, 1.5-5 TON
Introducing the MVME Series Air Handlers, an advanced climate control solution designed for maximum efficiency and adaptability. With a focus on variable speed ECM blower motors and all-aluminum tubes & fins, these units offer exceptional performance in both cooling and heat pump applications. The MVME Series stands out with its factory-sealed cabinet, certified to achieve a leakage rate of 2% or less at 1.0 inch water column, and its versatility for multi-position installation.
Advanced Efficiency
- Designed for both cooling and heat pump applications, the MVME series ensures a seamless integration into any HVAC system, providing efficient air distribution.
- The all-aluminum coil enhances heat transfer efficiency while minimizing the potential for leaks, ensuring long-term reliability and performance.
User-Friendly Design
- Easy maintenance is guaranteed with the blower and coil's slide-out design, which allows for quick access and servicing without the need for extensive disassembly.
- Field-installed heater kits, ranging from 5 to 20 kW, provide additional heating capacity, making the MVME series adaptable to a wide range of climate needs.
| Item | Parameter |
|---|---|
| Model | MVME24A1MN1OC / MVME36B1MN1OC / MVME60C1MN1OC / MVME61C1MN1TC |
| Cooling Capacity | 24,000 - 60,000 Btu/h |
| Voltage / Phase | 208/230V, 1 Ph, 60Hz |
| External Static Pressure | 0.7 - 0.8 in.w.c. |
| Fan Motor Type | ECM |
| Rated RPM | 1050 RPM |
| Full Load Amps (FLA) | 2.6 - 4.5 A |
| Fan Blower Material | Metal |
| Fan Blower Type | Centrifugal |
| Evaporator Coil Type | Tube & Fin |
| Tube Material | Aluminum |
| Refrigerant Connection Size - Liquid Line | 3/8 O.D. |
| Refrigerant Connection Size - Suction Line | 3/4 - 7/8 O.D. |
| Dimensions (HxWxD) inches | 41-3/8 x 18-1/8 x 20-1/2 to 54-1/2 x 22 x 24 |
| Weight | 101 - 161 lbs |
Midea Error Codes
- E3 - Combined water outlet temperature sensor error
- E4 - Water outlet temperature sensor error
- 1E5 - Air side heat exchanger refrigerant outlet temperature sensor T3A error
- E7 - Outdoor ambient temperature sensor error
- 2Eb - Water side heat exchanger anti-freezing temperature sensor Taf2 error
- 1Ed - Discharge pipe temperature sensor of system A error
- 2Ed - Discharge pipe temperature sensor of system B error
- EF - Water inlet temperature sensor error
- EP - Discharge pipe temperature sensor failure alarm
- EU - Air side heat exchanger refrigerant total outlet temperature sensor Tz/7 error
- 1F9 - Inverter module temperature sensor (Tfin1) error
- 2F9 - Inverter module temperature sensor (Tfin2) error
- Fb - Pressure sensor error
- Fd - Air suction temperature sensor error
- All stop running
- Error code is displayed on main PCB and user interface
