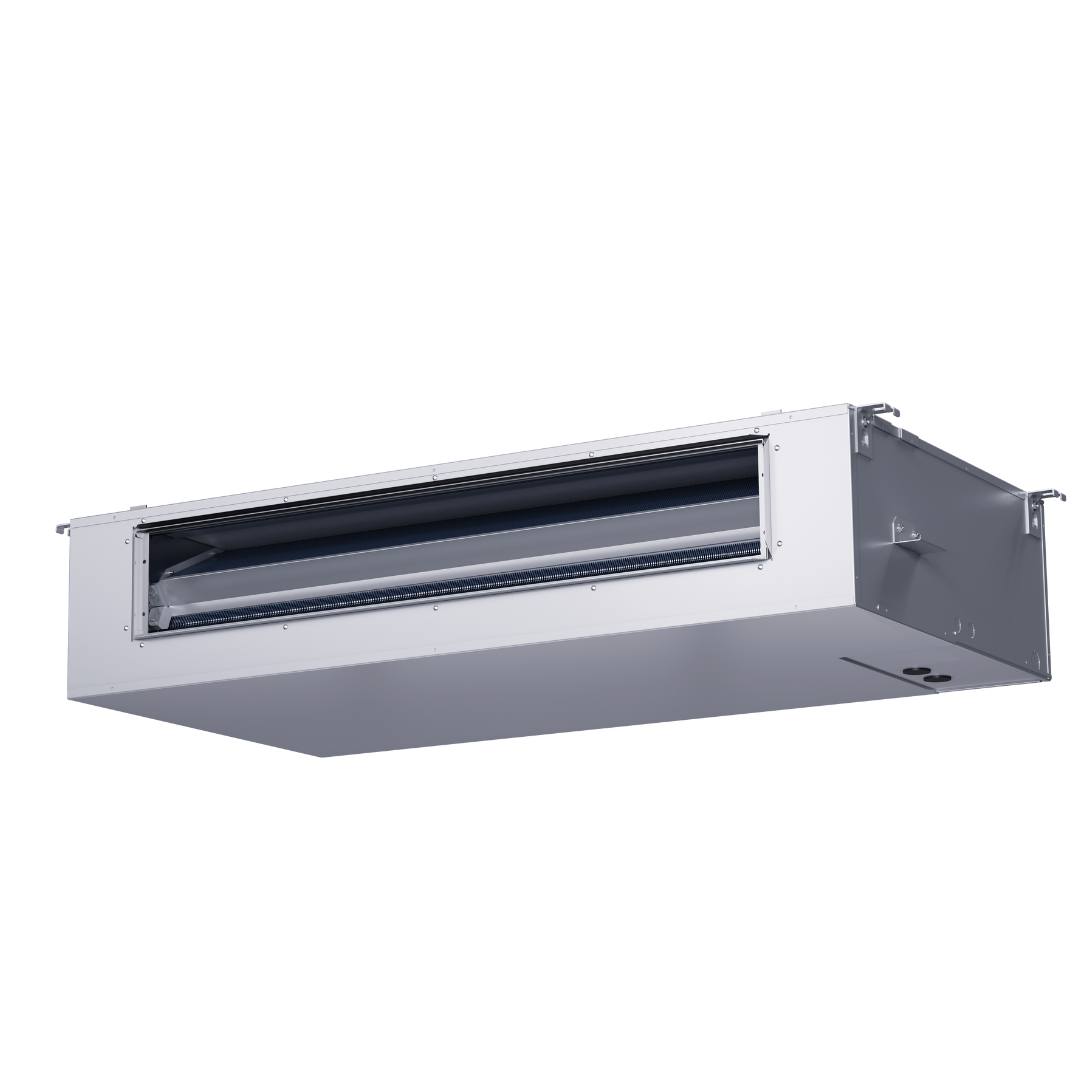

Midea MPCP SERIES: MULTI-SPEED PSC CEILING-MOUNTED, 2 TON

MPCP SERIES: MULTI-SPEED PSC CEILING-MOUNTED, 1.5-3 TON Presenting the MPCP Series, a ceiling-mounted air handler designed for...
Vendor: Midea
SKU: MPCP24A1MN1TA
Availability: Out Of Stock
Please login to see the price
Please login to see the price
Please hurry! Only 0 left in stock
10 customers are viewing this product

MPCP SERIES: MULTI-SPEED PSC CEILING-MOUNTED, 1.5-3 TON

Presenting the MPCP Series, a ceiling-mounted air handler designed for flexibility and efficiency in cooling and heat pump applications. This series features a durable, corrosion-resistant cabinet, all-aluminum coils for enhanced heat transfer, and a variable speed blower motor for improved comfort and air quality.

Superior Design and Efficiency

  • The MPCP series boasts a unique design that combines reliability and energy efficiency. The cabinet is specially designed to prevent energy loss and virtually eliminate condensation.
  • Featuring an all-aluminum coil that provides excellent heat transfer, durability, and a reduced chance of refrigerant leakage compared to conventional copper coils.

Enhanced Comfort and Quiet Operation

  • With its variable speed blower motor, the MPCP series ensures gradual startup and shutdown, leading to decreased energy consumption, higher air quality, and more consistent temperature control for added comfort.
  • The design of the blower compartment significantly reduces sound levels for quiet operation, enhancing the overall comfort of your living or working space.

Compact and Aesthetically Pleasing Design

  • The MPCP series features a super slim appearance and compact structure, saving much-needed installation space while maintaining a sleek and unobtrusive look.

Item Parameter
Cooling Capacity 18,000 - 36,000 Btu/h
External Static Pressure 0.3 - 0.8 in.w.g.
Voltage / Phase 208/230V, 1 Ph, 60Hz
Min. Circuit Amps 1.7 - 2.8 A
Max. Overcurrent Protection 15 A
Fan Motor Type PSC
Horsepower (HP) 1/8 - 1/3 HP
Rated RPM 1075 - 1600 RPM
Full Load Amps (FLA) 1.04 - 1.8 A
Blower Material Metal
Blower Type Centrifugal
Evaporator Coil Type Tube & Fin
Tube Material Aluminum
Liquid Line Size (O.D.) 3/8"
Suction Line Size (O.D.) 3/4"
Dimensions (HxWxD) inches 39-3/4" x 30-3/8" x 43-3/8" to 51-3/4" x 42-1/6" x 55-3/8"
Unit Operating Weight (lbs.) 110 - 137 lbs

Midea Error Codes

  • E3 - Combined water outlet temperature sensor error
  • E4 - Water outlet temperature sensor error
  • 1E5 - Air side heat exchanger refrigerant outlet temperature sensor T3A error
  • E7 - Outdoor ambient temperature sensor error
  • 2Eb - Water side heat exchanger anti-freezing temperature sensor Taf2 error
  • 1Ed - Discharge pipe temperature sensor of system A error
  • 2Ed - Discharge pipe temperature sensor of system B error
  • EF - Water inlet temperature sensor error
  • EP - Discharge pipe temperature sensor failure alarm
  • EU - Air side heat exchanger refrigerant total outlet temperature sensor Tz/7 error
  • 1F9 - Inverter module temperature sensor (Tfin1) error
  • 2F9 - Inverter module temperature sensor (Tfin2) error
  • Fb - Pressure sensor error
  • Fd - Air suction temperature sensor error
  • All stop running
  • Error code is displayed on main PCB and user interface

Error Documentation

Midea Error Codes
