Midea MPCE SERIES: MULTI-SPEED ECM CEILING-MOUNTED, 2.5 TON

MPCE SERIES: MULTI-SPEED ECM CEILING-MOUNTED, 1.5-3 TON Introducing the MPCE Series, our advanced ceiling-mounted air handler designed...
Vendor: Midea
SKU: MPCE30B1MN1TA
Availability: Out Of Stock
Please login to see the price
Please login to see the price
Please hurry! Only 0 left in stock
10 customers are viewing this product

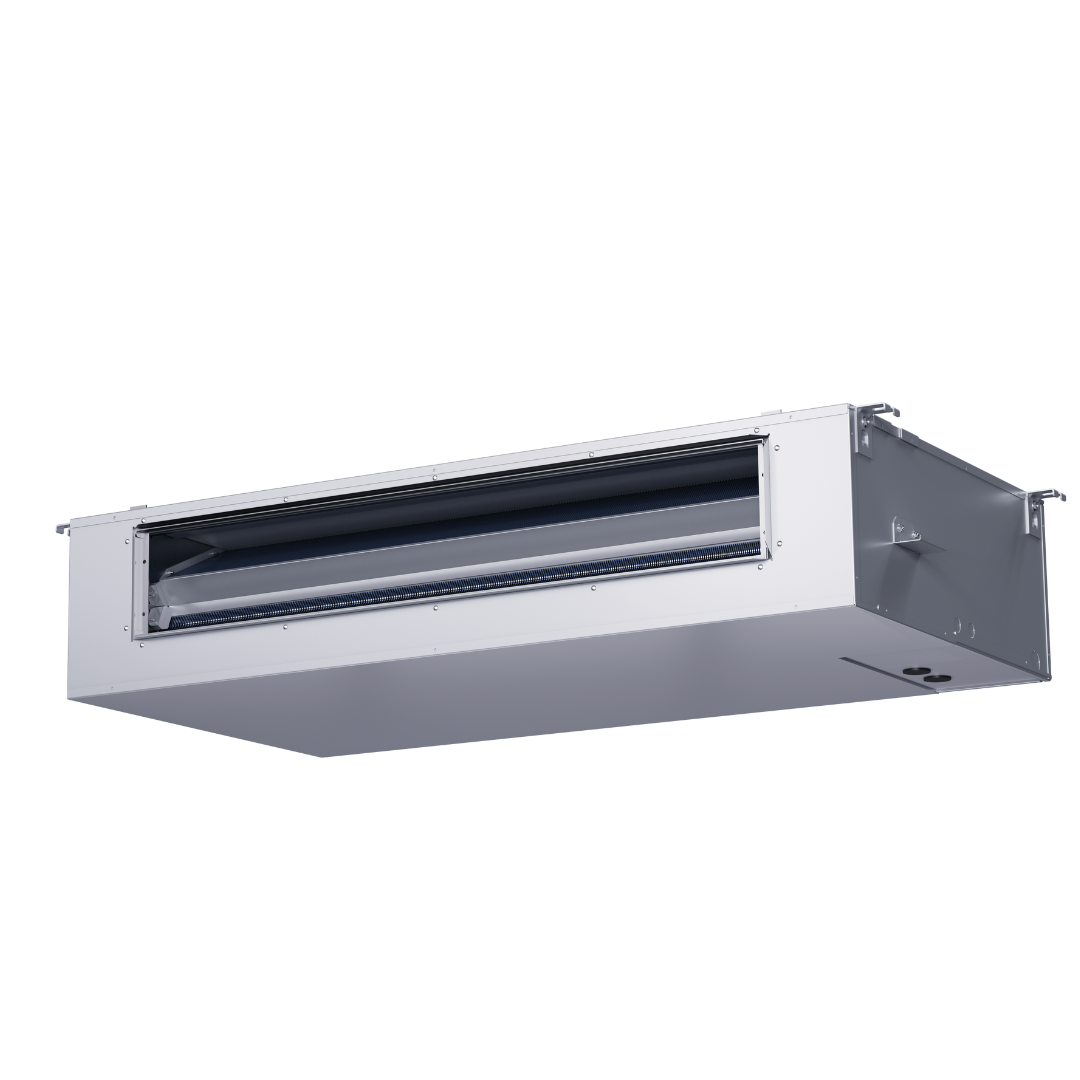

MPCE SERIES: MULTI-SPEED ECM CEILING-MOUNTED, 1.5-3 TON

Introducing the MPCE Series, our advanced ceiling-mounted air handler designed to provide exceptional energy efficiency and comfort. With its ECM motor for variable speed control, durable and corrosion-resistant cabinet, and all-aluminum coil for superior heat transfer, this series sets a new standard for indoor air handling.

Energy Efficiency and Performance

  • The MPCE Series is equipped with an ECM motor that ensures efficient operation by providing gradual startup and shutdown, reducing energy consumption and enhancing indoor air quality and temperature consistency.
  • Its all-aluminum coil excels in heat transfer efficiency while being more durable and reducing the chances of refrigerant leakage, as opposed to conventional copper coils.

Designed for Comfort and Quiet Operation

  • Featuring a cabinet designed to minimize energy loss and eliminate condensation, alongside a unique, rust-resistant drain pan that is sloped to prevent standing water.
  • The blower compartment is engineered to reduce sound levels, ensuring quiet operation and energy savings.

Compact and Aesthetic Design

  • With its super slim appearance and compact structure, the MPCE Series offers an exquisite design that saves installation space without compromising on performance or aesthetics.

Warranty Coverage

Airtek/Midea proudly backs all their models with a robust manufacturer's warranty. This comprehensive warranty spans an impressive 10 years, safeguarding your investment. Rest assured, any warranty claims you may have will be efficiently handled by Airtek/Midea's, guaranteeing top-tier customer support and satisfaction. The 10-year warranty encompasses the compressor, while other parts enjoy coverage for 5 years. With this warranty, you can trust in the long-term protection of your purchase, ensuring you receive the utmost quality.

Item Parameter
Cooling Capacity 18,000 - 36,000 BTU/h
External Static Pressure 45 - 60 in.w.g.
Voltage / Phase 208/230V, 1 Ph, 60Hz
Min. / Max. Voltage 187/253 V
Min. Circuit Amps 3.3 A
Max. Overcurrent Protection 15 A
Motor Type ECM
Horsepower 15 A
Feature Specification
Cooling Capacity 18,000 - 36,000 BTU/h
Electrical Data 208/230V, 1 Ph, 60Hz
Fan Motor Type ECM
Full Load Amps (FLA) 2.6 A
Fan Blower Material Metal
Fan Blower Type Centrifugal
Evaporator Coil Type Tube & Fin
Tube Material Aluminum
Refrigerant Connection Size - Liquid Line 3/8 O.D.
Refrigerant Connection Size - Suction Line 3/4 O.D.
Dimensions (HxWxD) inches 39-3/4 x 30-3/8 x 28 to 51-3/4 x 42-1/6 x 40
Unit Operating Weight 110 - 137 lbs

Midea Error Codes

  • E3 - Combined water outlet temperature sensor error
  • E4 - Water outlet temperature sensor error
  • 1E5 - Air side heat exchanger refrigerant outlet temperature sensor T3A error
  • E7 - Outdoor ambient temperature sensor error
  • 2Eb - Water side heat exchanger anti-freezing temperature sensor Taf2 error
  • 1Ed - Discharge pipe temperature sensor of system A error
  • 2Ed - Discharge pipe temperature sensor of system B error
  • EF - Water inlet temperature sensor error
  • EP - Discharge pipe temperature sensor failure alarm
  • EU - Air side heat exchanger refrigerant total outlet temperature sensor Tz/7 error
  • 1F9 - Inverter module temperature sensor (Tfin1) error
  • 2F9 - Inverter module temperature sensor (Tfin2) error
  • Fb - Pressure sensor error
  • Fd - Air suction temperature sensor error
  • All stop running
  • Error code is displayed on main PCB and user interface

Error Documentation

Midea Error Codes
