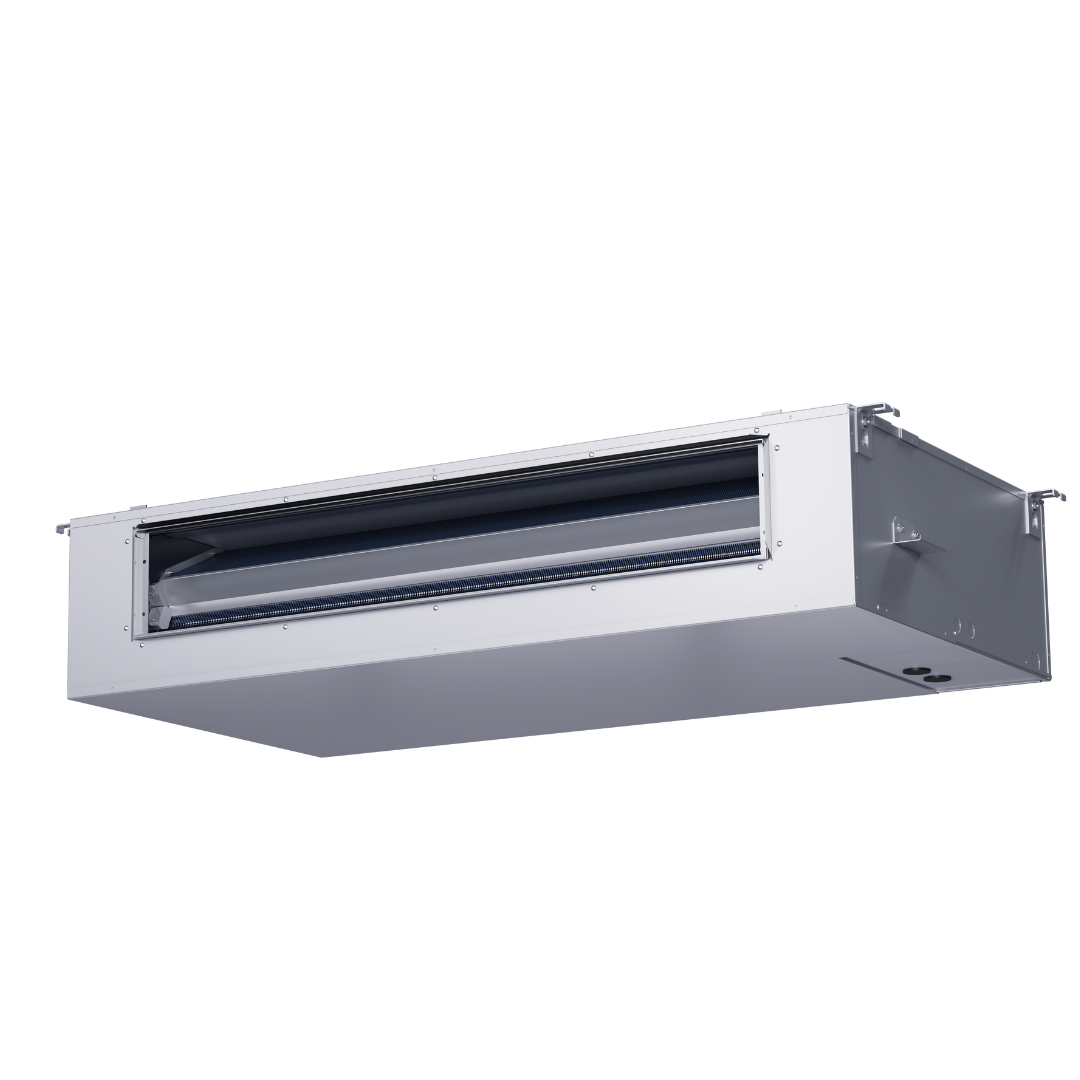

MPCE SERIES: MULTI-SPEED ECM CEILING-MOUNTED, 1.5-3 TON
Introducing the MPCE Series, our advanced ceiling-mounted air handler designed to provide exceptional energy efficiency and comfort. With its ECM motor for variable speed control, durable and corrosion-resistant cabinet, and all-aluminum coil for superior heat transfer, this series sets a new standard for indoor air handling.
Energy Efficiency and Performance
Designed for Comfort and Quiet Operation
Compact and Aesthetic Design
Warranty Coverage
Airtek/Midea proudly backs all their models with a robust manufacturer's warranty. This comprehensive warranty spans an impressive 10 years, safeguarding your investment. Rest assured, any warranty claims you may have will be efficiently handled by Airtek/Midea's, guaranteeing top-tier customer support and satisfaction. The 10-year warranty encompasses the compressor, while other parts enjoy coverage for 5 years. With this warranty, you can trust in the long-term protection of your purchase, ensuring you receive the utmost quality.
Specifications at a Glance
Item | Parameter |
---|---|
Cooling Capacity | 18,000 - 36,000 BTU/h |
External Static Pressure | 45 - 60 in.w.g. |
Voltage / Phase | 208/230V, 1 Ph, 60Hz |
Min. / Max. Voltage | 187/253 V |
Min. Circuit Amps | 3.3 A |
Max. Overcurrent Protection | 15 A |
Motor Type | ECM |
Horsepower | 15 A |
Feature | Specification |
Cooling Capacity | 18,000 - 36,000 BTU/h |
Electrical Data | 208/230V, 1 Ph, 60Hz |
Fan Motor Type | ECM |
Full Load Amps (FLA) | 2.6 A |
Fan Blower Material | Metal |
Fan Blower Type | Centrifugal |
Evaporator Coil Type | Tube & Fin |
Tube Material | Aluminum |
Refrigerant Connection Size - Liquid Line | 3/8 O.D. |
Refrigerant Connection Size - Suction Line | 3/4 O.D. |
Dimensions (HxWxD) inches | 39-3/4 x 30-3/8 x 28 to 51-3/4 x 42-1/6 x 40 |
Unit Operating Weight | 110 - 137 lbs |
