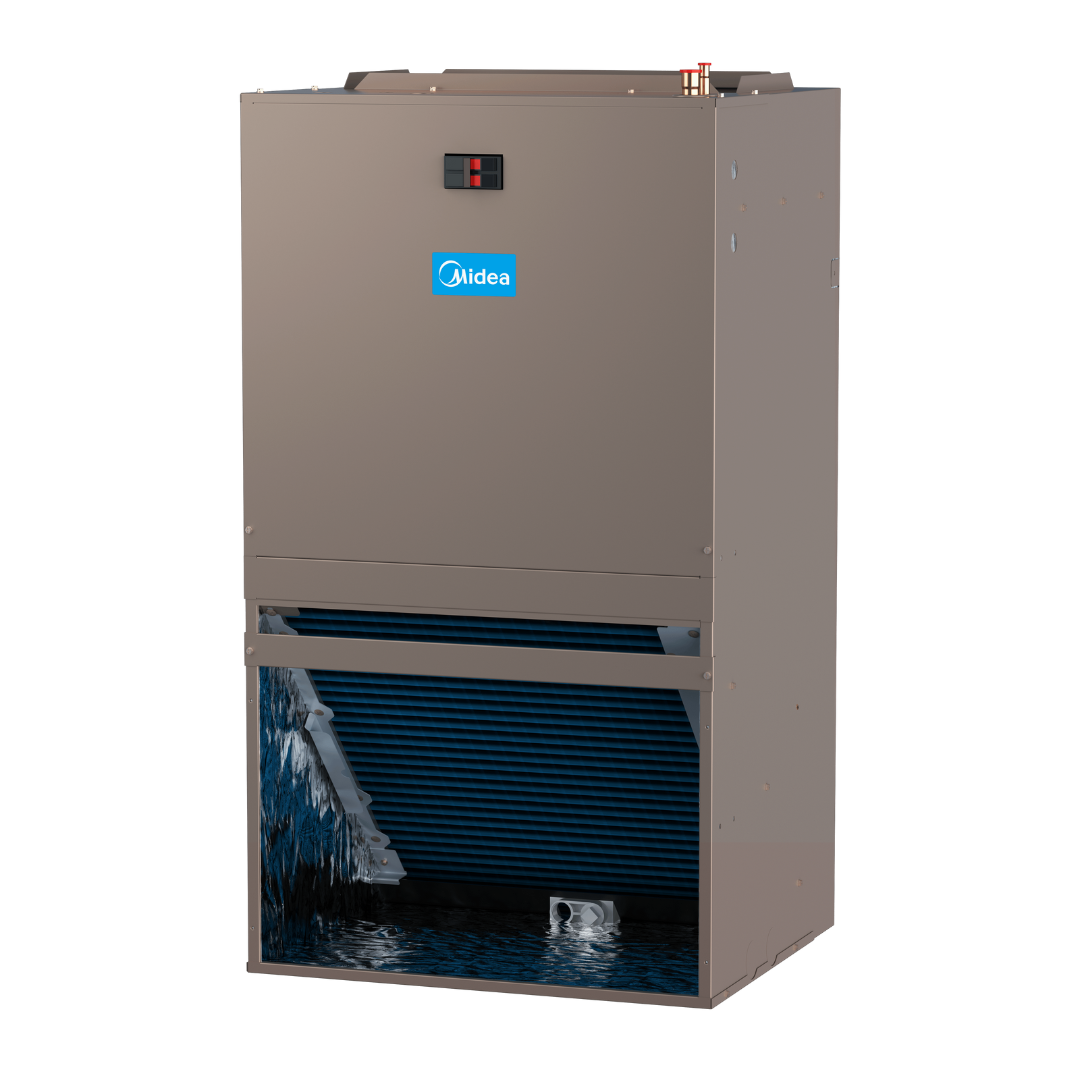

MHVE SERIES: MULTI-SPEED ECM WALL-MOUNT, 1.5-3 TON
Introducing the MHVE Series Multi-Speed ECM Wall-Mount, the ultimate solution for versatile indoor climate control. Engineered by Midea, this series offers direct-drive, multi-speed ECM/PSC motors for adjustable air volume, ensuring efficient heating and cooling across a range of residential and commercial settings.
Design Flexibility
- Featuring a versatile design with front or bottom return options, the MHVE series adapts seamlessly to any installation scenario, maximizing space and efficiency.
- The built-in filter rack and thermoplastic drain pan with primary and secondary drain connections ensure ease of maintenance and durability, contributing to the unit's longevity and consistent performance.
Enhanced Air Quality
- With an all-aluminum coil for enhanced heat transfer and efficiency, and optional heating elements available in 5kW, 8kW, and 10kW, the MHVE series provides customizable comfort for all seasons.
- Our units are designed with air quality in mind, including a built-in filter rack that simplifies air filter installation and maintenance, ensuring clean and healthy air circulation.
Installation Ease
- Every unit comes with a wall-hanging bracket, simplifying the installation process and making it straightforward to secure your wall-mount in the desired location.
- Our series' direct-drive, multi-speed motors allow for air volume variation, providing tailored comfort for heating and cooling needs.
| Item | Parameter |
|---|---|
| Model | MHVE18A1MN1TA / MHVE24A1MN1TA / MHVE30B1MN1TA / MHVE36B1MN1TA |
| Cooling Capacity | 18,000 Äì 36,000 Btu/h |
| Voltage / Phase | 208/230V, 1 Ph, 60Hz |
| External Static Pressure | 0.8 in.w.c |
| Fan Motor Type | ECM |
| Refrigerant Type | R410A |
| Sound Power Level | 50 - 54 dB |
| Liquid Line Size | 3/8" O.D. |
| Suction Line Size | 3/4" O.D. |
| Dimensions (HxWxD) | 36-1/2" x 20-1/2" x 15" (For 18K/24K models), 39-1/2" x 22" x 19" (For 30K/36K models) |
| Weight | 79/95 lbs (18K/24K models), 97/119 lbs (30K/36K models) |
| Airflow | Variable, based on external static pressure |
| Filter Size | 16x20x1 (18/24K models), 20x20x1 (30/36K models) |
Midea Error Codes
- E3 - Combined water outlet temperature sensor error
- E4 - Water outlet temperature sensor error
- 1E5 - Air side heat exchanger refrigerant outlet temperature sensor T3A error
- E7 - Outdoor ambient temperature sensor error
- 2Eb - Water side heat exchanger anti-freezing temperature sensor Taf2 error
- 1Ed - Discharge pipe temperature sensor of system A error
- 2Ed - Discharge pipe temperature sensor of system B error
- EF - Water inlet temperature sensor error
- EP - Discharge pipe temperature sensor failure alarm
- EU - Air side heat exchanger refrigerant total outlet temperature sensor Tz/7 error
- 1F9 - Inverter module temperature sensor (Tfin1) error
- 2F9 - Inverter module temperature sensor (Tfin2) error
- Fb - Pressure sensor error
- Fd - Air suction temperature sensor error
- All stop running
- Error code is displayed on main PCB and user interface
