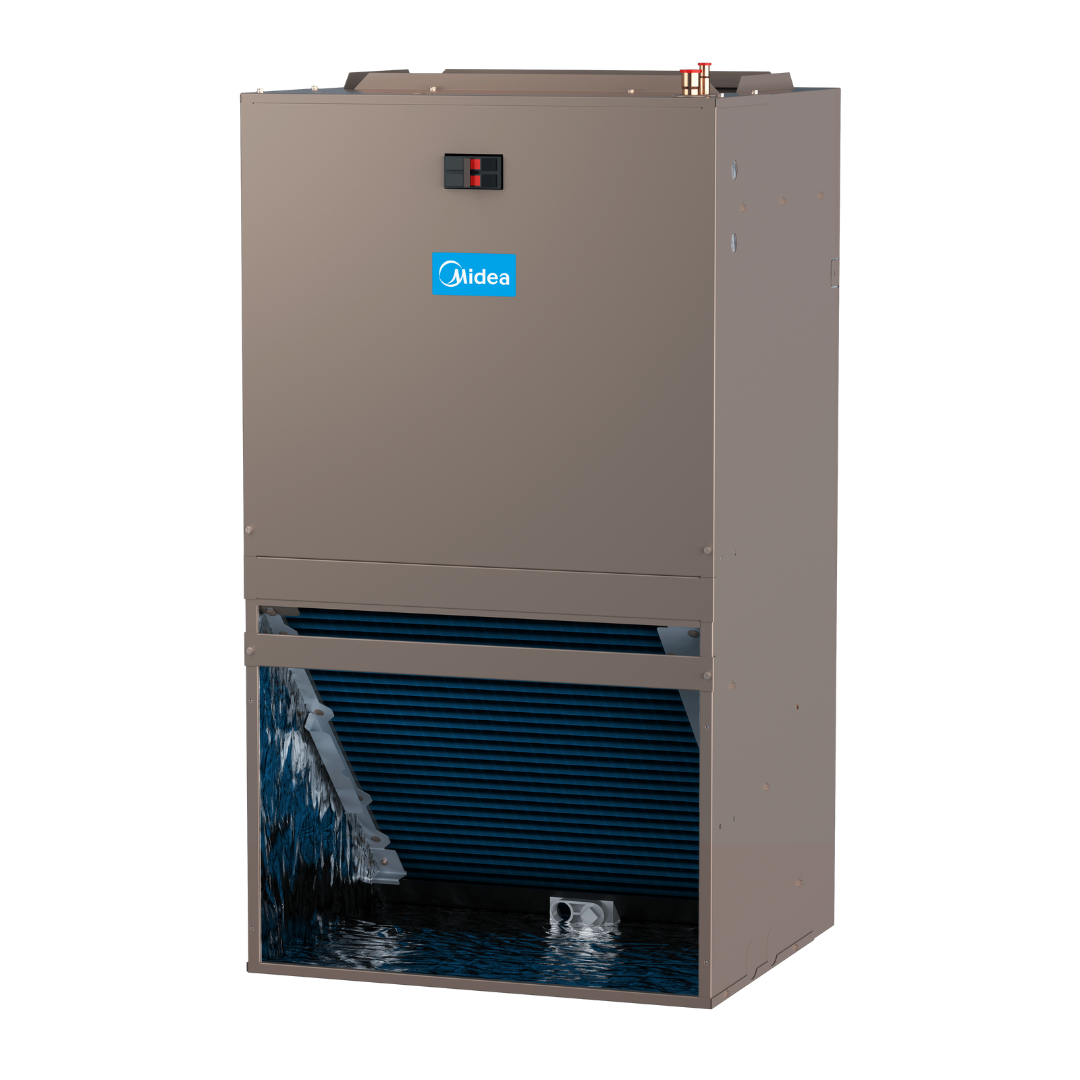

MHVE SERIES: MULTI-SPEED ECM WALL-MOUNT, 1.5-3 TON
Introducing the MHVE Series Multi-Speed ECM Wall-Mount, the ultimate solution for versatile indoor climate control. Engineered by Midea, this series offers direct-drive, multi-speed ECM/PSC motors for adjustable air volume, ensuring efficient heating and cooling across a range of residential and commercial settings.
Design Flexibility
Enhanced Air Quality
Installation Ease
Item | Parameter |
---|---|
Model | MHVE18A1MN1TA / MHVE24A1MN1TA / MHVE30B1MN1TA / MHVE36B1MN1TA |
Cooling Capacity | 18,000 Äì 36,000 Btu/h |
Voltage / Phase | 208/230V, 1 Ph, 60Hz |
External Static Pressure | 0.8 in.w.c |
Fan Motor Type | ECM |
Refrigerant Type | R410A |
Sound Power Level | 50 - 54 dB |
Liquid Line Size | 3/8" O.D. |
Suction Line Size | 3/4" O.D. |
Dimensions (HxWxD) | 36-1/2" x 20-1/2" x 15" (For 18K/24K models), 39-1/2" x 22" x 19" (For 30K/36K models) |
Weight | 79/95 lbs (18K/24K models), 97/119 lbs (30K/36K models) |
Airflow | Variable, based on external static pressure |
Filter Size | 16x20x1 (18/24K models), 20x20x1 (30/36K models) |
