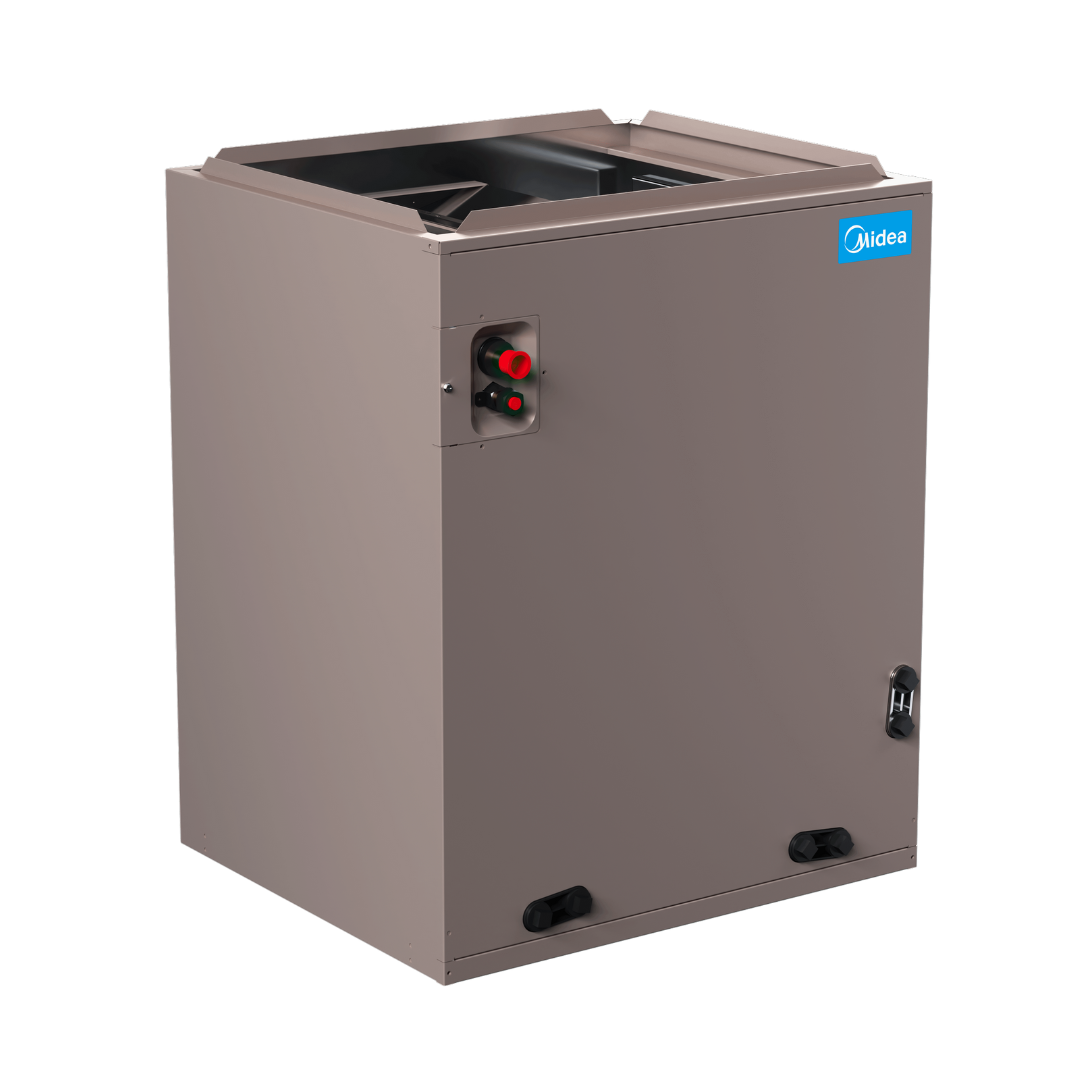

MCPM SERIES: ALL ALUMINUM A Coil (TXV built-in), 2.5-5 TON
The MCPM Series All Aluminum A Coils are engineered for excellence, featuring multi-refrigerant compatibility with both R410A and R22. These coils are constructed with enhanced aluminum fins and internally grooved copper tubing, offering a high-quality heat-exchange solution. Designed for flexibility, the cased coil variants include thermal insulation to prevent sweating and accommodate multi-position installation with dual drain pans. Compatible with Midea unitary products and many popular brand-name gas furnaces and split systems, these coils are UL listed, ensuring top-notch quality and reliability.
Unmatched Quality and Flexibility
- Compatibility with R410A and R22 refrigerants, offering versatility across different HVAC systems.
- Constructed with enhanced aluminum fins and internally grooved copper tubing for superior thermal efficiency.
- Thermally insulated cabinets in cased coil variants to prevent sweating and enhance durability.
Designed for Versatile Installation
- Support for multi-position installation, including cased coil options with dual drain pans for added convenience.
- Wide compatibility with Midea unitary products and many popular brand-name gas furnaces and split systems.
UL Listed for Guaranteed Performance
- Ensuring the highest standards of safety and performance, the MCPM Series A Coils are UL listed with 10-Year Warranty.
| Item | Parameter |
|---|---|
| Models | MCPM3036ANOH, MCPM3642BNOH, MCPM4248CNOH, MCPM4860DNOH |
| Nominal Cooling Capacity | 30000/36000 to 48000/60000 BTU/h |
| Tube Material | Aluminum |
| Refrigerant Compatibility | R410A, R22 |
| Installation Type | Multiple Position Installation |
| Liquid Line Size (O.D.) | 3/8" |
| Suction Line Size (O.D.) | 3/4" to 7/8" |
| Unit Dimensions (HxWxD) | Varies by model |
| Weight | Varies by model |
| Certification | UL Listed |
Midea Error Codes
- E3 - Combined water outlet temperature sensor error
- E4 - Water outlet temperature sensor error
- 1E5 - Air side heat exchanger refrigerant outlet temperature sensor T3A error
- E7 - Outdoor ambient temperature sensor error
- 2Eb - Water side heat exchanger anti-freezing temperature sensor Taf2 error
- 1Ed - Discharge pipe temperature sensor of system A error
- 2Ed - Discharge pipe temperature sensor of system B error
- EF - Water inlet temperature sensor error
- EP - Discharge pipe temperature sensor failure alarm
- EU - Air side heat exchanger refrigerant total outlet temperature sensor Tz/7 error
- 1F9 - Inverter module temperature sensor (Tfin1) error
- 2F9 - Inverter module temperature sensor (Tfin2) error
- Fb - Pressure sensor error
- Fd - Air suction temperature sensor error
- All stop running
- Error code is displayed on main PCB and user interface
