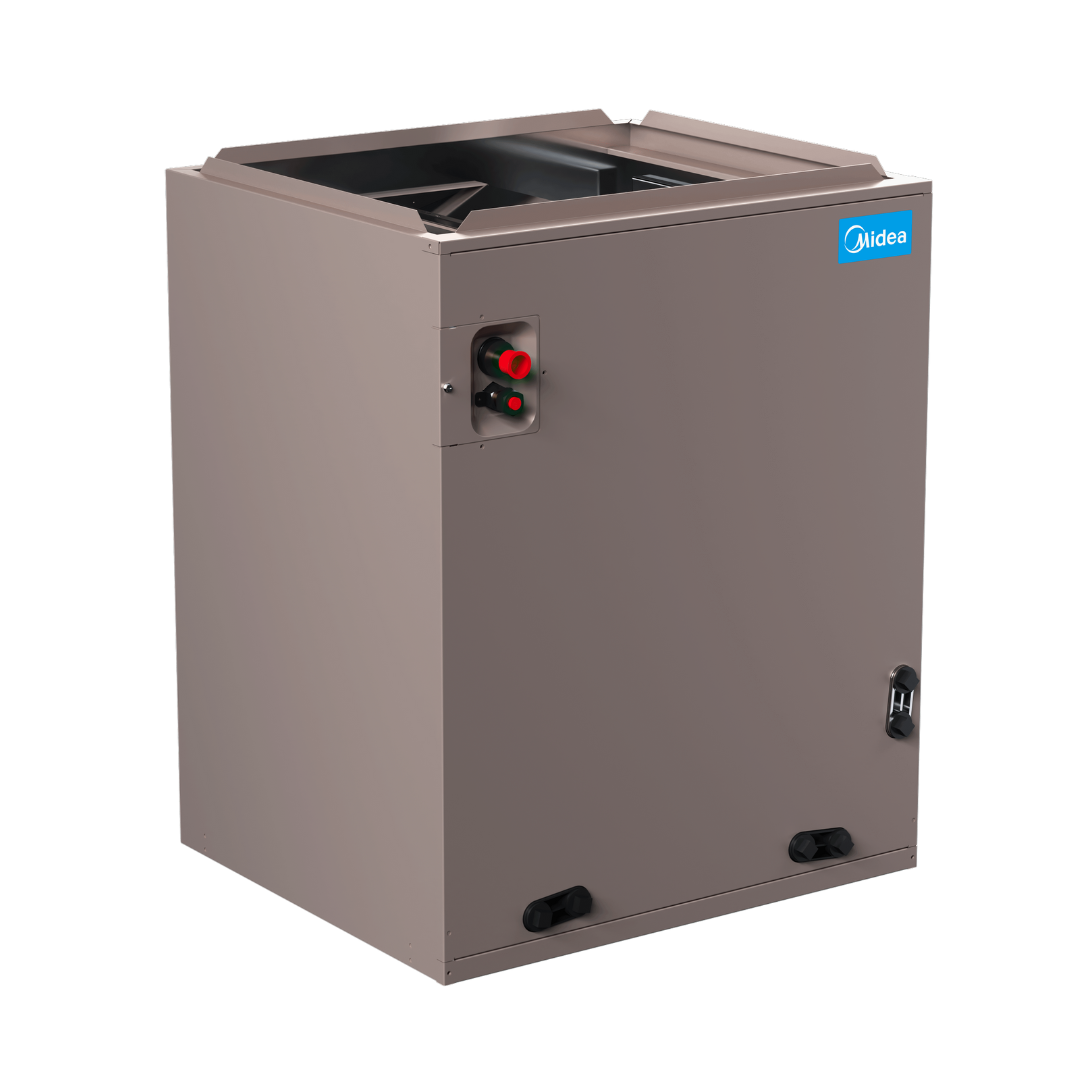

MCPM SERIES ALL ALUMINUM A Coil (TXV built-in), 4 TON MCPM4248BNTH

MCPM SERIES: ALL ALUMINUM A Coil (TXV built-in), 2.5-5 TON The MCPM Series All Aluminum A Coils...
Vendor: Midea
SKU: MCPM4248BNTH
Availability: Out Of Stock
Please login to see the price
$5,000.00
$5,000.00
Please hurry! Only 0 left in stock
10 customers are viewing this product

MCPM SERIES: ALL ALUMINUM A Coil (TXV built-in), 2.5-5 TON

The MCPM Series All Aluminum A Coils are engineered for excellence, featuring multi-refrigerant compatibility with both R410A and R22. These coils are constructed with enhanced aluminum fins and internally grooved copper tubing, offering a high-quality heat-exchange solution. Designed for flexibility, the cased coil variants include thermal insulation to prevent sweating and accommodate multi-position installation with dual drain pans. Compatible with Midea unitary products and many popular brand-name gas furnaces and split systems, these coils are UL listed, ensuring top-notch quality and reliability.

Unmatched Quality and Flexibility

  • Compatibility with R410A and R22 refrigerants, offering versatility across different HVAC systems.
  • Constructed with enhanced aluminum fins and internally grooved copper tubing for superior thermal efficiency.
  • Thermally insulated cabinets in cased coil variants to prevent sweating and enhance durability.

Designed for Versatile Installation

  • Support for multi-position installation, including cased coil options with dual drain pans for added convenience.
  • Wide compatibility with Midea unitary products and many popular brand-name gas furnaces and split systems.

UL Listed for Guaranteed Performance

  • Ensuring the highest standards of safety and performance, the MCPM Series A Coils are UL listed with 10-Year Warranty.

Item Parameter
Models MCPM3036ANOH, MCPM3642BNOH, MCPM4248CNOH, MCPM4860DNOH
Nominal Cooling Capacity 30000/36000 to 48000/60000 BTU/h
Tube Material Aluminum
Refrigerant Compatibility R410A, R22
Installation Type Multiple Position Installation
Liquid Line Size (O.D.) 3/8"
Suction Line Size (O.D.) 3/4" to 7/8"
Unit Dimensions (HxWxD) Varies by model
Weight Varies by model
Certification UL Listed

Gree Error Codes

  • E1 - Compressor high pressure protection
  • E3 - Compressor low pressure protection
  • E4 - Compressor air discharge high-temperature protection
  • F2 - Condenser temperature sensor error
  • F3 - Outdoor ambient temperature sensor error
  • F4 - Discharge temperature sensor error
  • F6 - ODU tube temperature sensor error
  • EE - ODU memory chip error
  • H4 - Overload
  • H5 - IPM protection
  • H6 - DC fan error
  • H7 - Driver out-of-step protection
  • HC - Pfc protection
  • Lc - Startup failure
  • P0 - Driver reset protection
  • P5 - Over-current protection
  • P6 - Master control and driver communication error
  • P7 - Driver module sensor error
  • P8 - Driver module high temperature protection
  • PA - AC current protection
  • Pc - Driver current error
  • PL - Bus low-voltage protection
  • PH - Bus high-voltage protection
  • PU - Charge loop error
  • ee - Drive memory chip error
  • e1 - High pressure sensor error
  • C4 - ODU jumper cap error

Midea Error Codes

  • E3 - Combined water outlet temperature sensor error
  • E4 - Water outlet temperature sensor error
  • 1E5 - Air side heat exchanger refrigerant outlet temperature sensor T3A error
  • E7 - Outdoor ambient temperature sensor error
  • 2Eb - Water side heat exchanger anti-freezing temperature sensor Taf2 error
  • 1Ed - Discharge pipe temperature sensor of system A error
  • 2Ed - Discharge pipe temperature sensor of system B error
  • EF - Water inlet temperature sensor error
  • EP - Discharge pipe temperature sensor failure alarm
  • EU - Air side heat exchanger refrigerant total outlet temperature sensor Tz/7 error
  • 1F9 - Inverter module temperature sensor (Tfin1) error
  • 2F9 - Inverter module temperature sensor (Tfin2) error
  • Fb - Pressure sensor error
  • Fd - Air suction temperature sensor error
  • All stop running
  • Error code is displayed on main PCB and user interface
