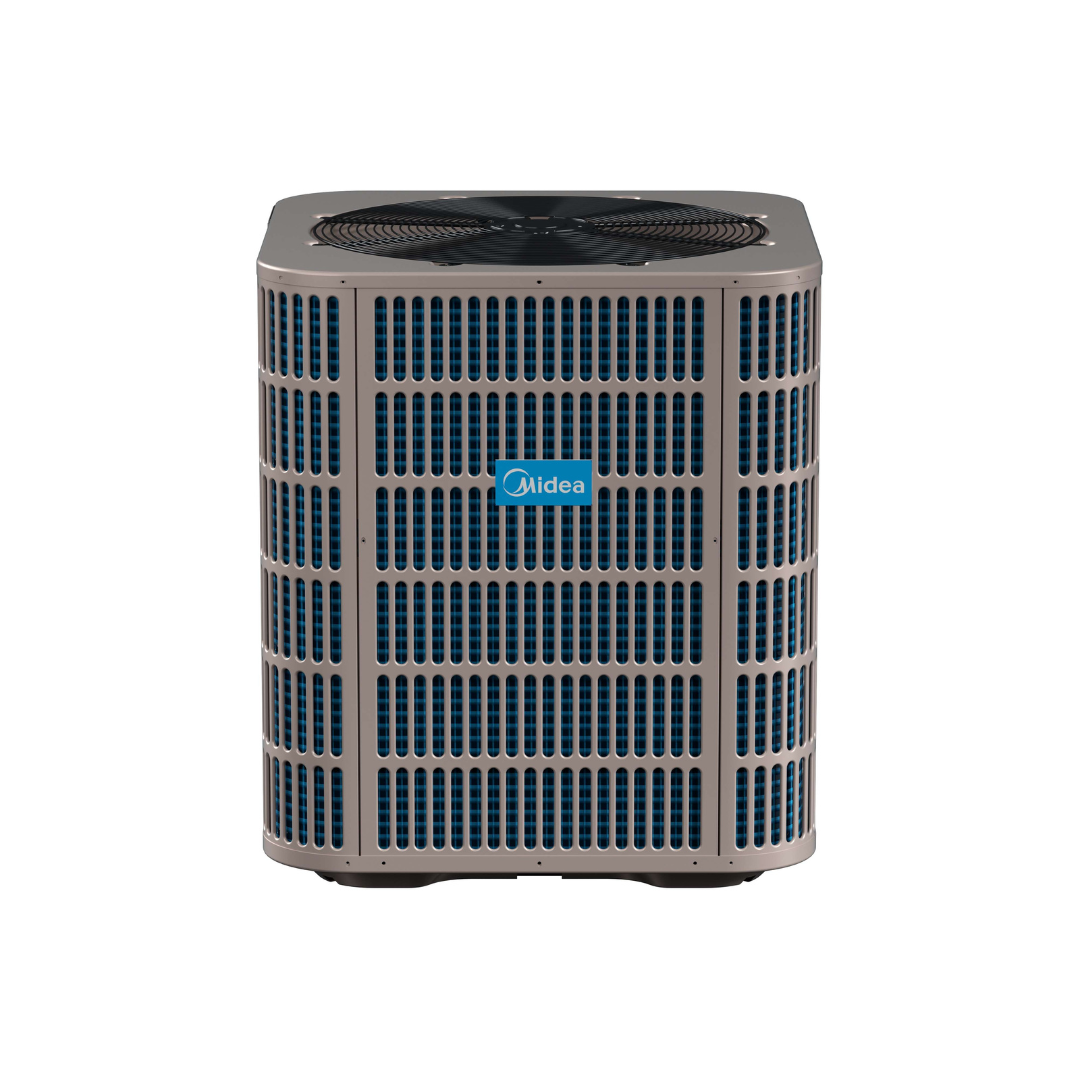

M152A SERIES UP TO 15.2 SEER2, 1.5-5 TON
Introducing the M152A Series Air Conditioners, your solution to efficient and effective cooling. Engineered with precision, these units are designed to offer superior cooling performance, energy efficiency, and user comfort. With a focus on eco-friendliness, the M152A series uses R410A refrigerant, ensuring minimal environmental impact while providing robust cooling capabilities.
Energy Efficiency
- Achieving up to 15.2 SEER2, the M152A Series Air Conditioners stand out for their exceptional energy efficiency. These units are designed to maximize cooling output while minimizing energy consumption, making them an ideal choice for environmentally conscious users seeking to reduce their carbon footprint and energy bills.
- The M152A series is equipped with an energy-efficient compressor and a high-quality condenser with inner-groove copper tubes and aluminum fins, enhancing the unit's cooling efficiency and longevity.
Home Comfort
- Designed with a unique sound control top, these air conditioners operate quietly, ensuring minimal noise disruption. Enjoy a peaceful and serene home environment even during the hottest days.
- The compact design facilitates easy installation and transportation, making the M152A series suitable for various residential and commercial settings.
Convenient Operation
- Service valves with sweat connections and easy-access gauge ports simplify the maintenance process, ensuring that your air conditioner continues to operate efficiently over time.
- Every unit comes with a factory-installed high pressure switch, adding an extra layer of safety and reliability to your cooling system.
Reliable Function
- The M152A Series is AHRI certified and ETL listed, ensuring compliance with the highest standards for quality and safety.
- Internally protected against high temperature motor overload conditions, these air conditioners are built to last.
Technical Specifications
| Item | Specification |
|---|---|
| Cooling Capacity (BTU/h) | 18,000 - 61,000 |
| SEER Rating | Up to 15.2 |
| Voltage / Phase (60 Hz) | 208/230V / 1Ph |
| Minimum / Maximum Voltage | 187/253V |
| Refrigerant Type | R410A |
| Compressor Type | Rotary / Scroll (Varies by model) |
| Operation Range Cooling (¬¨â àûF) | 55 - 115¬¨â àûF |
| Sound Power Level (dB) | 70 - 78 dB (Varies by model) |
| Dimensions (H x W x D) inches | Varies by model |
| Weight (lbs.) | 117 - 216 lbs. (Varies by model) |
Documentation and Certifications
Midea M152A SERIES UP TO 15.2 SEER2, 1.5-5 TON Brochure
Midea M152A SERIES UP TO 15.2 SEER2, 1.5-5 TON Installation Manual
Midea M152A SERIES UP TO 15.2 SEER2, 1.5-5 TON Product Specification
| Item | Specification |
|---|---|
| Cooling Capacity (BTU/h) | 18,000 - 61,000 |
| SEER Rating | Up to 15.2 |
| Voltage / Phase (60 Hz) | 208/230V / 1Ph |
| Minimum / Maximum Voltage | 187/253V |
| Refrigerant Type | R410A |
| Compressor Type | Rotary / Scroll (Varies by model) |
| Operation Range Cooling (¬¨â àûF) | 55 - 115¬¨â àûF |
| Sound Power Level (dB) | 70 - 78 dB (Varies by model) |
| Dimensions (H x W x D) inches | Varies by model |
| Weight (lbs.) | 117 - 216 lbs. (Varies by model) |
Midea Error Codes
- E3 - Combined water outlet temperature sensor error
- E4 - Water outlet temperature sensor error
- 1E5 - Air side heat exchanger refrigerant outlet temperature sensor T3A error
- E7 - Outdoor ambient temperature sensor error
- 2Eb - Water side heat exchanger anti-freezing temperature sensor Taf2 error
- 1Ed - Discharge pipe temperature sensor of system A error
- 2Ed - Discharge pipe temperature sensor of system B error
- EF - Water inlet temperature sensor error
- EP - Discharge pipe temperature sensor failure alarm
- EU - Air side heat exchanger refrigerant total outlet temperature sensor Tz/7 error
- 1F9 - Inverter module temperature sensor (Tfin1) error
- 2F9 - Inverter module temperature sensor (Tfin2) error
- Fb - Pressure sensor error
- Fd - Air suction temperature sensor error
- All stop running
- Error code is displayed on main PCB and user interface
