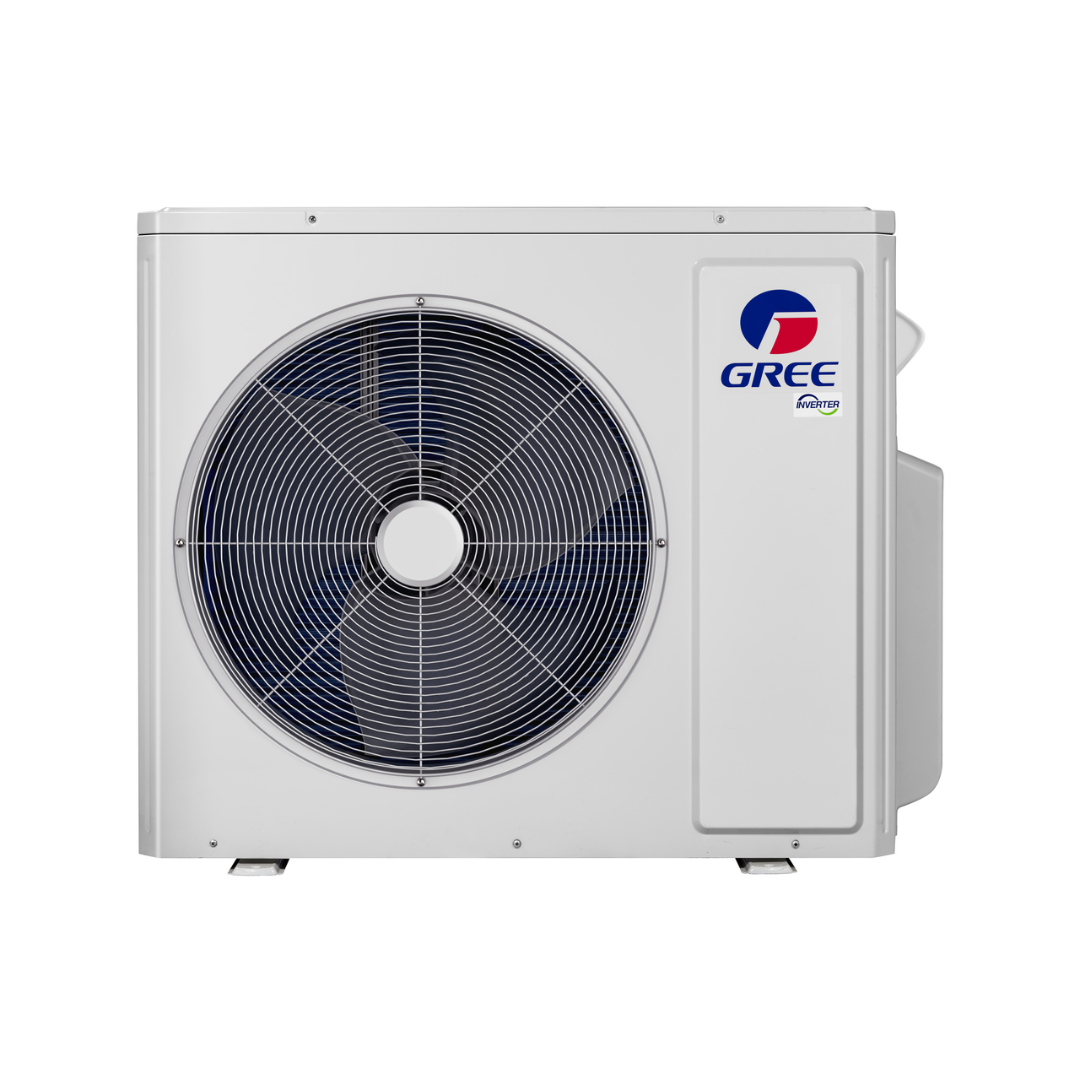

GREE, FREE MATCH M SERIES, Ultra Heat, Multi-Zone, Inverter Heat Pump, 30KBTU, 208/1/60, ODU, GWHD(30)ND3MO

SUBMITTAL DATA FREE MATCH ULTRA HEAT MULTI-ZONE INVERTER HP: GWHD(30)ND3MO The Free Match multi-zone system offers exceptional...
Vendor: Gree
SKU: GWHD(30)ND3MO
Availability: Out Of Stock
Please login to see the price
Please login to see the price
Please hurry! Only -1 left in stock
10 customers are viewing this product

SUBMITTAL DATA FREE MATCH ULTRA HEAT MULTI-ZONE INVERTER HP: GWHD(30)ND3MO

The Free Match multi-zone system offers exceptional versatility, allowing you to cater to the unique comfort requirements of every room in your house. With individual remote controls provided for each unit, you have independent control over each room, providing personalized comfort. Gree's Free Match Series delivers both cooling and heating capabilities for up to five distinct zones, operating independently even in temperatures as low as -30°C. Enjoy the flexibility and cost-effective comfort of Gree's Free Match system in your home.

Energy Efficiency

  • Free Match multi-zone system is Energy Star certified, guaranteeing superior energy efficiency and environmental sustainability. With this certification, you can save on energy costs and reduce your carbon footprint. Make an eco-friendly choice with our Energy Star certified product.

Home Comfort

  • Gree Free Match provides you with the freedom to select and combine various types and sizes of heat pumps to perfectly suit your space. With Gree Free Match outdoor units, redundancy is built-in, allowing for optimal efficiency.
  • Embrace a customizable solution that perfectly matches your comfort needs, and enjoy the confidence of an energy-efficient system designed for superior performance.

Convenient Operation

  • G10 Inverter technology revolutionizes the way your system operates, delivering exceptional energy efficiency and precise temperature control. With G10 Inverter technology, the compressor adjusts its speed according to the cooling or heating demands, optimizing performance and minimizing energy consumption.
  • Auto restart function that automatically restores operation after a power outage. You can have peace of mind knowing that your system will resume its previous settings and maintain your desired comfort level, even in the event of a power interruption.

Reliable Function

  • Allowing you to cool multiple areas simultaneously.
  • Low voltage start-up for reliable operation even with low power supply.
  • Fins with anti-corrosion coating for added durability and protection against corrosive environments.
  • Self-diagnosis function for quick and easy troubleshooting.
  • Automatic defrost function to prevent frost buildup and maintain optimal performance.
  • Heavy gauge steel cabinet for robust construction and longevity.
  • Eco-friendly R410A refrigerant for environmentally conscious cooling that minimizes impact on the ozone layer.

Warranty Coverage

Airtek/Gress proudly backs all their models with a robust manufacturer's warranty. This comprehensive warranty spans an impressive 10 years, safeguarding your investment. Rest assured, any warranty claims you may have will be efficiently handled by Airtek/Gress's, guaranteeing top-tier customer support and satisfaction. The 10-year warranty encompasses the compressor, while other parts enjoy coverage for 5 years. With this warranty, you can trust in the long-term protection of your purchase, ensuring you receive the utmost quality.

SPECIFICATIONS GWHD(30)ND3MO
System Type HEAT PUMP
Number of Zones 2 - 4
SYSTEM PERFORMANCE NON-DUCTED INDOOR UNITS
Cooling Min - Max: 8190 - 34100 Btu/h
Capacity @95¬¨â àûF: 28400 Btu/h
Heating Min - Max: 8190 - 40900 Btu/h
Capacity @5¬¨â àûF: 22800 Btu/h
Capacity @17¬¨â àûF: 27200 Btu/h
Capacity @47¬¨â àûF: 30000 W
SEER2 21
EER2 12.5
HSPF2 10
COP @5¬¨â àûF 1.8
COP @47¬¨â àûF 3.4
SYSTEM PERFORMANCE DUCTED INDOOR UNITS
Cooling Min - Max: 8190 - 34100 Btu/h
Capacity @95¬¨â àûF: 28400 Btu/h
Heating Min - Max: 8190 - 40900 Btu/h
Capacity @47¬¨â àûF: 30000 W
SEER2 16
EER2 11
HSPF2 8
COP @47¬¨â àûF 3.7
SYSTEM PERFORMANCE MIXED DUCTED AND NON-DUCTED INDOOR UNITS
Cooling Min - Max: 8190 - 34100 Btu/h
Capacity @95¬¨â àûF: 28400 Btu/h
Heating Min - Max: 40000 (8190 - 40900) Btu/h
Capacity @47¬¨â àûF: 30000 W
SEER2 18.5
EER2 11.8
HSPF2 9
COP @47¬¨â àûF 3.7
OUTDOOR UNIT GWHD(30)ND3MO
Cooling Temperature Range -22 - 118 ¬¨â àûF
Heating Temperature Range -22 - 75 ¬¨â àûF
Refrigerant Type R410A
Compressor Type GREE G-10 / 2 - STAGE INVERTER
Sound Pressure Level 63 dB(A)
External Dimensions (W x H x D) 40-3/16 x 32-9/16 x 16-13/16 in
Package Dimension (W x H x D) 43 x 34-7/8 x 19-5/8 in
Net Weight 152.1 lbs
Gross Weight 167.6 lbs
REFRIGERANT PIPING
Refrigerant Charge - R410A

105.8 oz

Additional Charge 0.2 0z/ft
Port Size (Liquid - Gas)
Pre-Charge Length 1/4 - 3/8 port A (in)
1/4 - 3/8 port B (in)
1/4 - 3/8 port C (in)
1/4 - 3/8 port D (in)
port E (in)
Pre-Charge Length 131 ft
Pipe Length (Min - Max) 10 - 263 ft
Pipe Length to furthest Indoor Unit 82 ft
Max. Pipe Elevation 82 ft
ELECTRICAL
Power Supply 208-230V / 1Ph / 60Hz
Voltage Range (Min - Max) 187 - 253 VAC
Rated Current - Cooling 22 A
Rated Current - Heating 22 A
MCA 23 A
MOCP 35 A
Suggested Breaker Size Per Local Code
Interconnecting Wire Size 14/4 AWG
FEATURES & FUNCTIONS SUMMARY GWHD(30)ND3MO
SYSTEM FEATURES
Inverter Type G10
Ultra Low Frequency Torque Control Yes
Power Factor Correction Yes
Compressor Type - Inverter High Efficiency Rotary
Basepan With Electric Heater Yes
Indoor & Outdoor Fin Coating (Blue Fin) Yes
Intelligent Defrosting Yes
Low Voltage Startup Yes
Memory/Power Failure Recovery Yes
Self Diagnosis Yes

Gree Error Codes

  • E1 - Compressor high pressure protection
  • E3 - Compressor low pressure protection
  • E4 - Compressor air discharge high-temperature protection
  • F2 - Condenser temperature sensor error
  • F3 - Outdoor ambient temperature sensor error
  • F4 - Discharge temperature sensor error
  • F6 - ODU tube temperature sensor error
  • EE - ODU memory chip error
  • H4 - Overload
  • H5 - IPM protection
  • H6 - DC fan error
  • H7 - Driver out-of-step protection
  • HC - Pfc protection
  • Lc - Startup failure
  • P0 - Driver reset protection
  • P5 - Over-current protection
  • P6 - Master control and driver communication error
  • P7 - Driver module sensor error
  • P8 - Driver module high temperature protection
  • PA - AC current protection
  • Pc - Driver current error
  • PL - Bus low-voltage protection
  • PH - Bus high-voltage protection
  • PU - Charge loop error
  • ee - Drive memory chip error
  • e1 - High pressure sensor error
  • C4 - ODU jumper cap error
