SUBMITTAL DATA FREE MATCH ULTRA HEAT MULTI-ZONE INVERTER HP: GWHD(24)ND3MO
The Free Match multi-zone system offers exceptional versatility, allowing you to cater to the unique comfort requirements of every room in your house. With individual remote controls provided for each unit, you have independent control over each room, providing personalized comfort. Gree's Free Match Series delivers both cooling and heating capabilities for up to five distinct zones, operating independently even in temperatures as low as -30°C. Enjoy the flexibility and cost-effective comfort of Gree's Free Match system in your home.
Energy Efficiency
Home Comfort
Convenient Operation
Reliable Function
Warranty Coverage
Airtek/Gress proudly backs all their models with a robust manufacturer's warranty. This comprehensive warranty spans an impressive 10 years, safeguarding your investment. Rest assured, any warranty claims you may have will be efficiently handled by Airtek/Gress's, guaranteeing top-tier customer support and satisfaction. The 10-year warranty encompasses the compressor, while other parts enjoy coverage for 5 years. With this warranty, you can trust in the long-term protection of your purchase, ensuring you receive the utmost quality.
SPECIFICATIONS GWHD(36)ND3MO | |
---|---|
System Type | HEAT PUMP |
Number of Zones | 2 - 3 |
SYSTEM PERFORMANCE NON-DUCTED INDOOR UNITS | |
Cooling Min - Max | 7500 - 31400 Btu/h |
Capacity F | 23200 Btu/h |
Heating Min - Max | 7500 - 31400 Btu/h |
Capacity F | 21600 Btu/h |
Capacity @17¬¨â àûF | 23600 Btu/h |
Capacity @47¬¨â àûF | 24000 W |
SEER2 | 21 |
EER2 | 12.5 |
HSPF2 | 10 |
COP F | 1.8 |
COP @47¬¨â àûF | 3.4 |
SYSTEM PERFORMANCE DUCTED INDOOR UNITS | |
Cooling Min - Max | 7500 - 31400 Btu/h |
Capacity F | 23200 Btu/h |
Heating Min - Max | 7500 - 31400 Btu/h |
Capacity F | |
Capacity @17¬¨â àûF | 23000 Btu/h |
Capacity @47¬¨â àûF | 24000 Btu/h |
SEER2 | 16 |
EER2 | 11 |
HSPF2 | 8 |
COP F | |
COP @47¬¨â àûF | 3.4 |

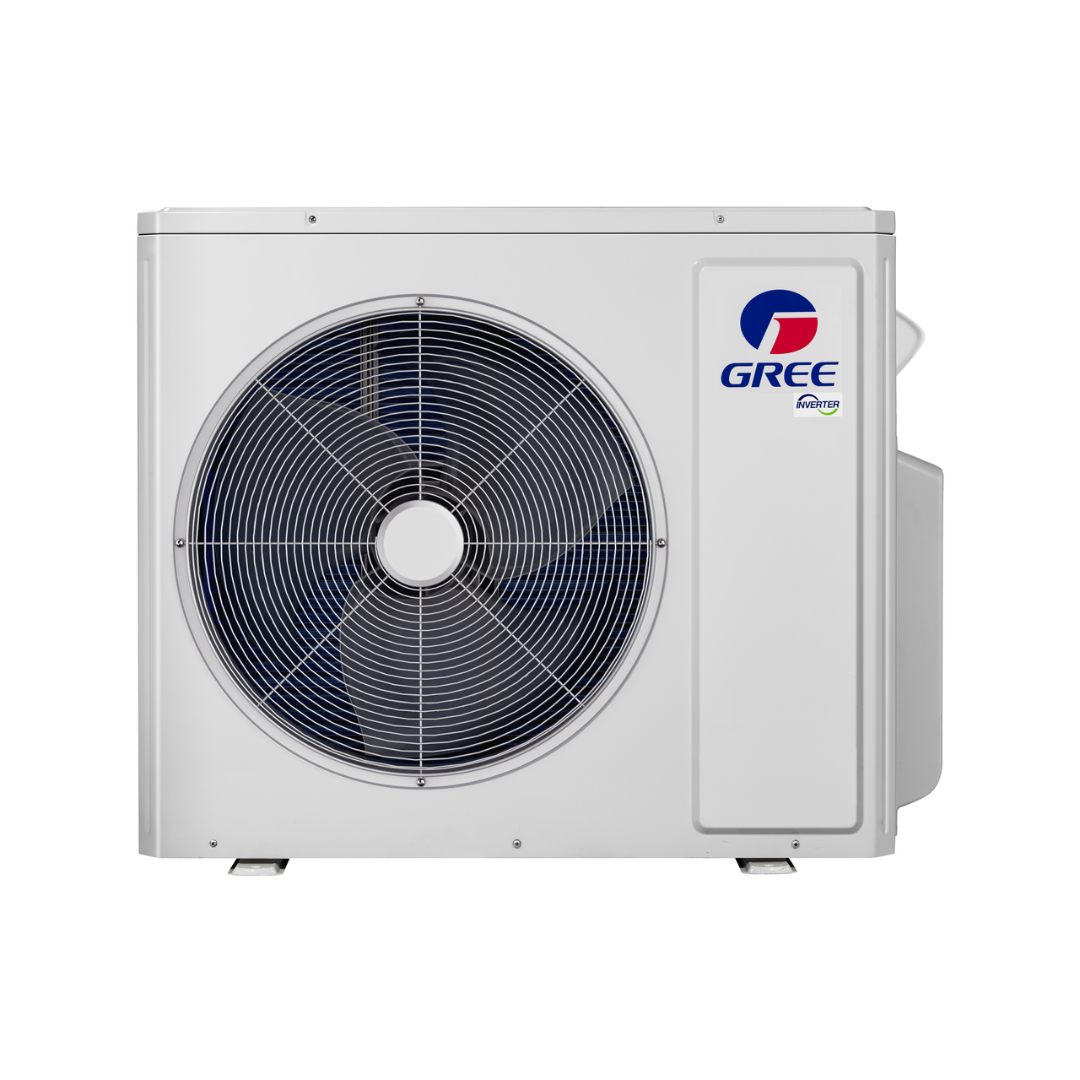

OUTDOOR UNIT HD(24)ND3MO | |
Cooling Temperature Range | -22 to 118 ¬¨â àûF |
Heating Temperature Range | -22 to 75 ¬¨â àûF |
Refrigerant Type | R410A |
Compressor Type | GREE G-10 / 2-STAGE INVERTER |
Sound Pressure Level | 58 dB(A) |
External Dimensions (W x H x D) | 38 x 26 x 15-7/8 in |
Package Dimension (W x H x D) | 40-5/8 x 29 x 18 in |
Net Weight | 114.6 lbs |
Gross Weight | 124.6 lbs |
REFRIGERANT PIPING | |
Refrigerant Charge - R410A Additional Charge | 84.6 oz |
Port Size (Liquid - Gas) | 0.2 oz/ft |
Pre-Charge Length | 1/4 - 3/8 port A (in) 1/4 - 3/8 port B (in) 1/4 - 3/8 port C (in) 1/4 - 3/8 port D (in) 1/4 - 3/8 port E (in) |
Pre-Charge Length | 98 ft |
Pipe Length (Min - Max) | 10 - 197 ft |
Pipe Lenght to furthest Indoor Unit | 66 ft |
Max. Pipe Elevation | 49 ft |
ELECTRICAL | |
Power Supply | 208-230V / 1Ph / 60Hz |
Voltage Range (Min - Max) | 187 - 253 VAC |
Rated Current - Cooling | 15 A |
Rated Current - Heating | 15 A |
MCA | 19 A |
MOCP | 25 A |
Suggested Breaker Size | 20 A |
Main Power Wire Size | Per Local Code AWG |
Interconnecting Wire Size | 14/4 |
FEATURES & FUNCTIONS SUMMARY HD(24)ND3MO | |
SYSTEM FEATURES | |
Inverter Type | G10 |
Ultra Low Frequency Torque Control | Yes |
Power Factor Correction | Yes |
Compressor Type - Inverter | High Efficiency Rotary |
Basepan With Electric Heater | Yes |
Indoor & Outdoor Fin Coating (Blue Fin) | Yes |
Intelligent Defrosting | Yes |
Low Voltage Startup | Yes |
Memory/Power Failure Recovery | Yes |
Self Diagnosis | Yes |
