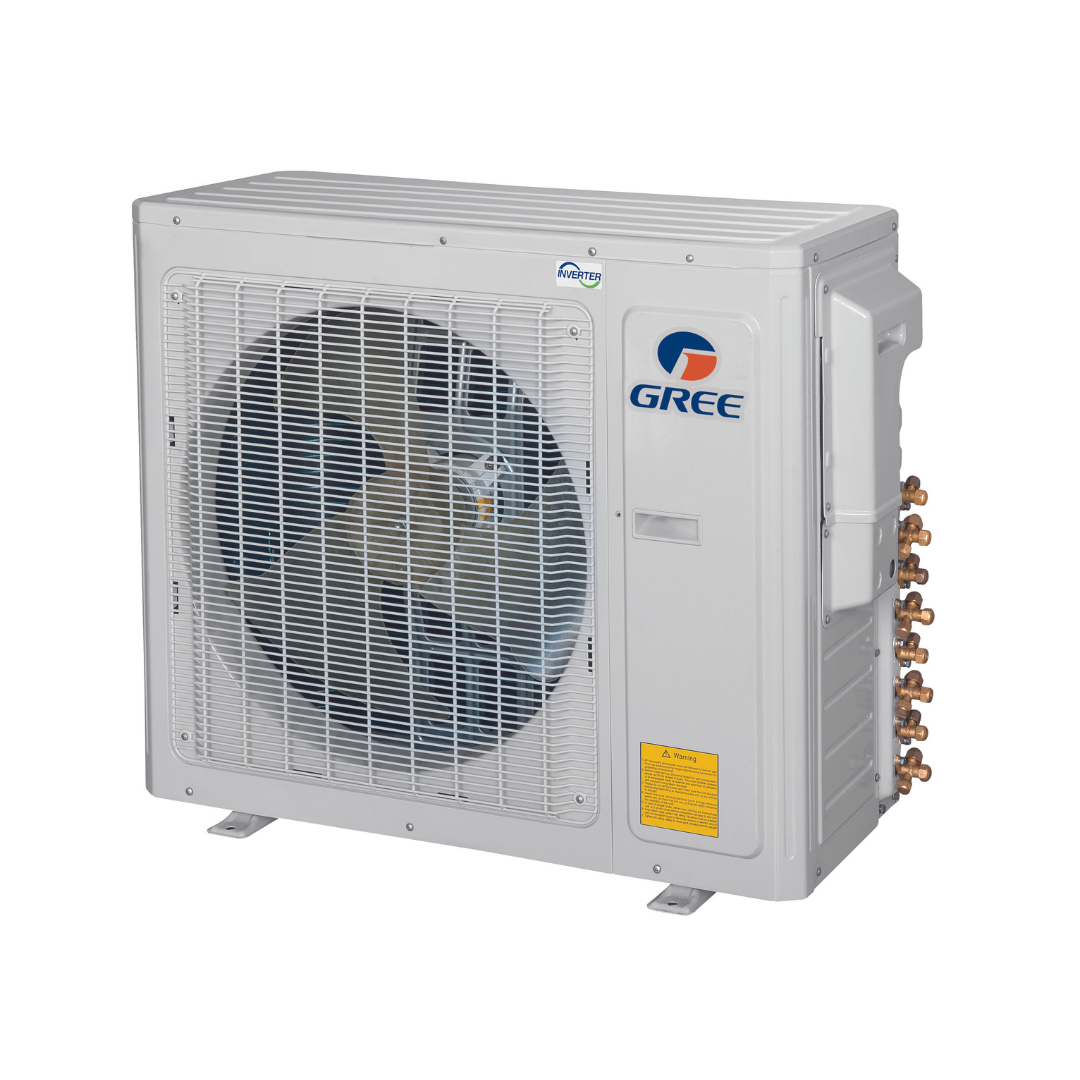

GREE, FREE MATCH G SERIES, 3-Zone, Inverter Heat Pump 24KBTU, 208/1/60, ODU, GWHD(24)ND3GO

SUBMITTAL DATA FREE MATCH 3-Zone Inverter Heat Pump: GWHD(24)ND3GO The Free Match multi-zone system offers exceptional versatility,...
Vendor: Gree
SKU: GWHD(24)ND3GO
Availability: Out Of Stock
Please login to see the price
Please login to see the price
Please hurry! Only 0 left in stock
10 customers are viewing this product

SUBMITTAL DATA FREE MATCH 3-Zone Inverter Heat Pump: GWHD(24)ND3GO

The Free Match multi-zone system offers exceptional versatility, allowing you to cater to the unique comfort requirements of every room in your house. With individual remote controls provided for each unit, you have independent control over each room, providing personalized comfort. Gree's Free Match Series delivers both cooling and heating capabilities for up to five distinct zones, operating independently even in temperatures as low as -20¬¨â àûC. Enjoy the flexibility and cost-effective comfort of Gree's Free Match system in your home.

Energy Efficiency

  • Free Match multi-zone system is Energy Star certified, guaranteeing superior energy efficiency and environmental sustainability. With this certification, you can save on energy costs and reduce your carbon footprint. Make an eco-friendly choice with our Energy Star certified product.

Home Comfort

  • Gree Free Match provides you with the freedom to select and combine various types and sizes of heat pumps to perfectly suit your space. With Gree Free Match outdoor units, redundancy is built-in, allowing for optimal efficiency.
  • Embrace a customizable solution that perfectly matches your comfort needs, and enjoy the confidence of an energy-efficient system designed for superior performance.

Convenient Operation

  • G10 Inverter technology revolutionizes the way your system operates, delivering exceptional energy efficiency and precise temperature control. With G10 Inverter technology, the compressor adjusts its speed according to the cooling or heating demands, optimizing performance and minimizing energy consumption.
  • Auto restart function that automatically restores operation after a power outage. You can have peace of mind knowing that your system will resume its previous settings and maintain your desired comfort level, even in the event of a power interruption.

Reliable Function

  • Up to 3 Indoor Units, allowing you to cool multiple areas simultaneously.
  • Low voltage start-up for reliable operation even with low power supply.
  • Fins with anti-corrosion coating for added durability and protection against corrosive environments.
  • Self-diagnosis function for quick and easy troubleshooting.
  • Automatic defrost function to prevent frost buildup and maintain optimal performance.
  • Heavy gauge steel cabinet for robust construction and longevity.
  • Eco-friendly R410A refrigerant for environmentally conscious cooling that minimizes impact on the ozone layer.

Warranty Coverage

Airtek/Gress proudly backs all their models with a robust manufacturer's warranty. This comprehensive warranty spans an impressive 10 years, safeguarding your investment. Rest assured, any warranty claims you may have will be efficiently handled by Airtek/Gress's, guaranteeing top-tier customer support and satisfaction. The 10-year warranty encompasses the compressor, while other parts enjoy coverage for 5 years. With this warranty, you can trust in the long-term protection of your purchase, ensuring you receive the utmost quality.

GENERAL FEATURES
-Only One Unit Required
-Up to Five Indoor Units (3-Port)
-G10 DC Inverter Technology
-Quiet Operation - Both Indoor & Outdoor
-Acrylic Resin Coil Coating
-Intelligent Defrost
-Auto Restart on Power Outages
-Mulit-point Diagnostics
-Unlimited 10 yr Parts Warranty
System Ratings
Non-Ducted Indoor
Rated Cooling Capacity 24,000 BTUH
Cooling Capacity (min-max) 7,500-33,000 BTUH
Rated Heating Capacity 26,000 BTUH
Heating Capacity (min-max) 7,500-35,000 BTUH
SEER/EER 21/12.5
HSPF/COP 11/3.7
Ducted Indoor
Rated Cooling Capacity 24,000 BTUH
Cooling Capacity (min-max) 7,500-33,000 BTUH
Rated Heating Capacity 26,000 BTUH
Heating Capacity (min-max) 7,500-35,000 BTUH
SEER/EER 16.0/10.5
HSPF/COP 8.5/3.2
Operating Range
Cooling (min-max) 0 ~ 118¬¨â àûF / -18 ~ 48¬¨â àûC
Heating (min-max) -5 ~ 75¬¨â àûF / -21 ~ 24¬¨â àûC
Power Supply
Normal Operational Voltage 208/230 V, 1 Phase, 60 Hz
Voltage Range 187 - 253 V
Main Power Wire Size 10-2 AWG
Interconnecting Cable Wire Size 14-4 AWG
MCA 23.0 A
MOCP/Breaker Size 30 A
Outdoor Unit Data
Compressor Type: DC Inverter Driven Rotary
RLA 15.8 A
Fan Motor Output Power: 90 W
FLA 0.6 A
Air Flow (Max) 2354 CFM
Sound Pressure Level Cooling: 59 dB(A)
Heating: 59 dB(A)
Dimensions & Weights
Unit Dimensions (LxHxD) 38.6 x 31.1 x 17.3 inch
Weight (Net/Shipping) 152.9/163.9 LBS
Min. Number of Indoor Units 1
Max. Number of Indoor Units 3
Refrigerant Piping Data
Refrigerant Type R410A
Refrigerant Charge 77.6 oz
Additional Charge Per Line Length 0.21-oz/ft
Connection Method Flared
Factory Charge for Total Line Length 98-ft
Total Refrigerant Pipe Length 197-ft
Max Refrigerant Piping Length to any Indoor Unit 65-ft
Min Refrigerant Piping Length to any Indoor Unit 10-ft
Max Elevation between Indoor Units 33-ft
Max Lift from Outdoor to Indoor Unit 33-ft
Max Drop from Outdoor to Indoor Unit 33-ft

Gree Error Codes

  • E1 - Compressor high pressure protection
  • E3 - Compressor low pressure protection
  • E4 - Compressor air discharge high-temperature protection
  • F2 - Condenser temperature sensor error
  • F3 - Outdoor ambient temperature sensor error
  • F4 - Discharge temperature sensor error
  • F6 - ODU tube temperature sensor error
  • EE - ODU memory chip error
  • H4 - Overload
  • H5 - IPM protection
  • H6 - DC fan error
  • H7 - Driver out-of-step protection
  • HC - Pfc protection
  • Lc - Startup failure
  • P0 - Driver reset protection
  • P5 - Over-current protection
  • P6 - Master control and driver communication error
  • P7 - Driver module sensor error
  • P8 - Driver module high temperature protection
  • PA - AC current protection
  • Pc - Driver current error
  • PL - Bus low-voltage protection
  • PH - Bus high-voltage protection
  • PU - Charge loop error
  • ee - Drive memory chip error
  • e1 - High pressure sensor error
  • C4 - ODU jumper cap error
