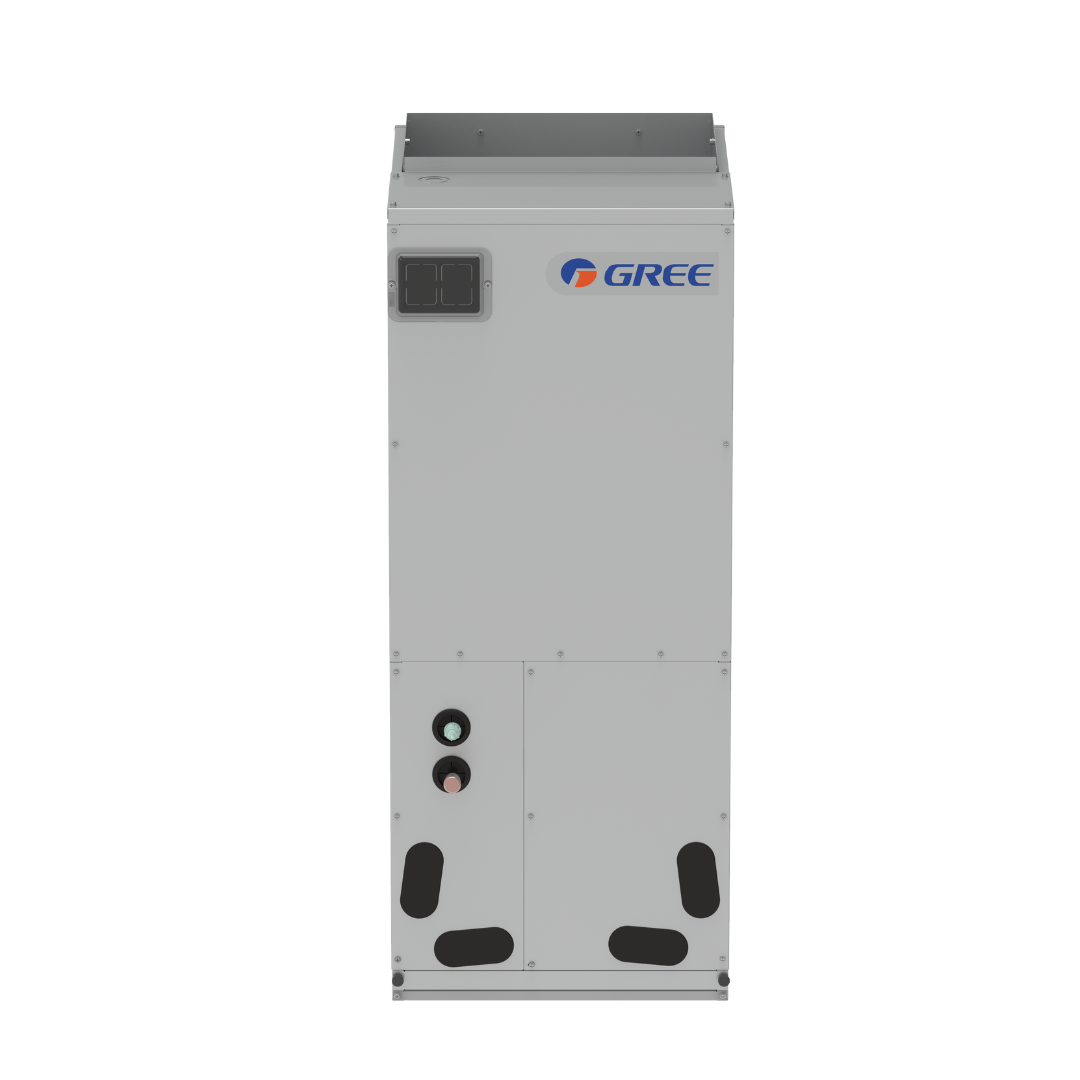

GREE, FLEXX AH 16, 16 SEER, High ESP, Top & Horizontal Flow, Air Handler Unit, 48KBTU, 208/1/60, IDU, GUD48AH2/D-D(U)

SUBMITTAL DATA FLEXX 16 SERIES: GUD48AH2/D-D(U) Experience exceptional comfort and convenience with our Inverter U-Match Series Air...
Vendor: Gree
SKU: GUD48AH2/D-D(U)
Availability: Out Of Stock
Please login to see the price
Please login to see the price
Please hurry! Only 0 left in stock
10 customers are viewing this product

SUBMITTAL DATA FLEXX 16 SERIES: GUD48AH2/D-D(U)

Experience exceptional comfort and convenience with our Inverter U-Match Series Air Conditioners. Combining central air conditioner comfort with the easy installation of mini split units, these air conditioners feature a corrosion-resistant pre-painted steel casing and a low-noise compressor with advanced protections. Enjoy efficient cooling with the hydrophilic aluminum fin and inner groove copper pipe condenser coil.

Energy Efficiency

  • FLEXX 16 SERIES 48K inverter u-match series - offer high operating efficiency and cost efficiency
  • Achieved UL certificate - meet different requirements from customers

Home Comfort

  • Connect supply-air outlets to duct - make the temperature and humidity even in room
  • Units with filters - easily accessible from the rear of the unit

Convenient Operation

  • Flexible Installation - Air-supply or air-return type, condensation water exit direction etc can be selected flexibly
  • Easy Maintenance - evaporator coils are constructed of quality inner groove copper tube and hydrophilic aluminum fin

Reliable Function

  • Timer and time display - customizable timer settings for convenient operation
  • Temperature - ¬∞F/¬∞C switch, temperature display, E-heater, temperature compensation
  • Others - Memory, 4-way valve energizing

Warranty Coverage

Airtek/Gress proudly backs all their models with a robust manufacturer's warranty. This comprehensive warranty spans an impressive 10 years, safeguarding your investment. Rest assured, any warranty claims you may have will be efficiently handled by Airtek/Gress's, guaranteeing top-tier customer support and satisfaction. The 10-year warranty encompasses the compressor, while other parts enjoy coverage for 5 years. With this warranty, you can trust in the long-term protection of your purchase, ensuring you receive the utmost quality.

Capacity
Cooling 46000 Btu/h
Heating 46000 Btu/h
Power Input
Cooling 5.41 kW
Heating 5.41 kW
SEER 2/ HSPF2
SEER 15.00
HSPF2 7.70
Indoor Unit GUD48AH2/D-D(U)
Power Supply 208/230V-1Ph-60Hz
Fan
Drive Direct
Motor Output 0.75 kW
Air Flow 2380 m(1400 CFM)
Rated Ext. Static Pressure 125 Pa (0.50 InWg)
Ext. Static Pressure Range 0-250 Pa (0-1.0 InWg)
Sound Pressure Level (H/ML) 53 dB(A)
Air Filter Metal
Drain Piping 25.4â Ä¢1.2 mm (1â Ä¢0.05 inch)
Outline Dimensions (WxDxH) 630â Ä¢540â Ä¢1320 mm (24-13/16â Ä¢21-1/4â Ä¢51.968 inch)
Net Weight 86.0 kg (189.6 lb)

Gree Error Codes

  • E1 - Compressor high pressure protection
  • E3 - Compressor low pressure protection
  • E4 - Compressor air discharge high-temperature protection
  • F2 - Condenser temperature sensor error
  • F3 - Outdoor ambient temperature sensor error
  • F4 - Discharge temperature sensor error
  • F6 - ODU tube temperature sensor error
  • EE - ODU memory chip error
  • H4 - Overload
  • H5 - IPM protection
  • H6 - DC fan error
  • H7 - Driver out-of-step protection
  • HC - Pfc protection
  • Lc - Startup failure
  • P0 - Driver reset protection
  • P5 - Over-current protection
  • P6 - Master control and driver communication error
  • P7 - Driver module sensor error
  • P8 - Driver module high temperature protection
  • PA - AC current protection
  • Pc - Driver current error
  • PL - Bus low-voltage protection
  • PH - Bus high-voltage protection
  • PU - Charge loop error
  • ee - Drive memory chip error
  • e1 - High pressure sensor error
  • C4 - ODU jumper cap error
