SUBMITTAL DATA FLEXX 16 SERIES: GUD36AH2/D-D(U)
Experience exceptional comfort and convenience with our Inverter U-Match Series Air Conditioners. Combining central air conditioner comfort with the easy installation of mini split units, these air conditioners feature a corrosion-resistant pre-painted steel casing and a low-noise compressor with advanced protections. Enjoy efficient cooling with the hydrophilic aluminum fin and inner groove copper pipe condenser coil.
Energy Efficiency
Home Comfort
Convenient Operation
Reliable Function
Warranty Coverage
Airtek/Gress proudly backs all their models with a robust manufacturer's warranty. This comprehensive warranty spans an impressive 10 years, safeguarding your investment. Rest assured, any warranty claims you may have will be efficiently handled by Airtek/Gress's, guaranteeing top-tier customer support and satisfaction. The 10-year warranty encompasses the compressor, while other parts enjoy coverage for 5 years. With this warranty, you can trust in the long-term protection of your purchase, ensuring you receive the utmost quality.
Capacity | |
---|---|
Cooling | 34000 Btu/h |
Heating | 34000 Btu/h |
Power Input | |
Cooling | 3.07 kW |
Heating | 3.41 kW |
SEER 2/ HSPF2 | |
SEER | 15.50 |
HSPF2 | 7.70 |

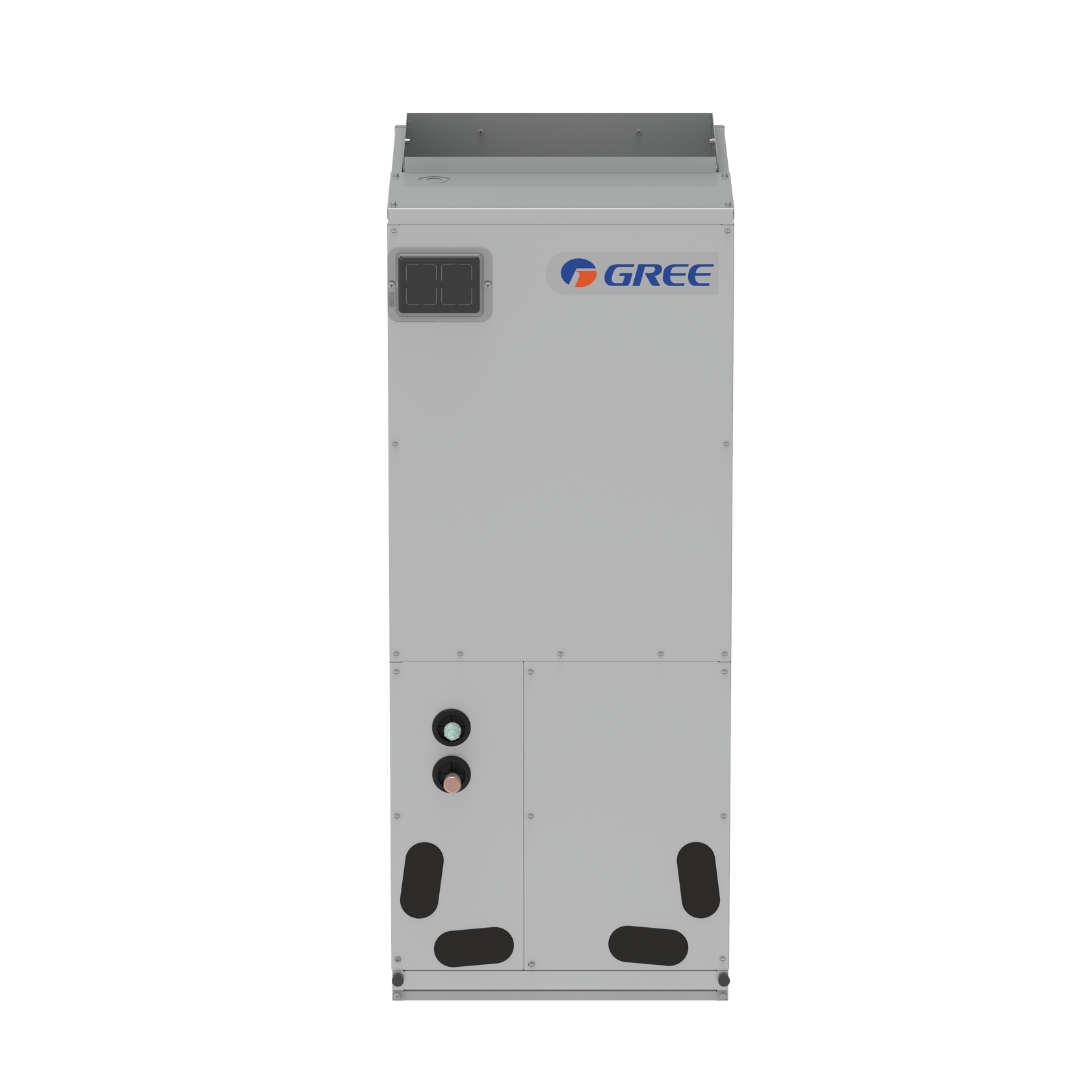

Indoor Unit | GUD36AH2/D-D(U) |
Power Supply | 208/230V-1Ph-60Hz |
Fan | |
Drive | Direct |
Motor Output | 0.37 kW |
Air Flow | 1758 m(1050 CFM) |
Rated Ext. Static Pressure | 125 Pa (0.50 InWg) |
Ext. Static Pressure Range | 0-250 Pa (0-1.0 InWg) |
Sound Pressure Level (H/ML) | 51 dB(A) |
Air Filter | Metal |
Drain Piping | 25.4•1.2 mm (1•0.05 inch) |
Outline Dimensions (WxDxH) | 540x540x1224 mm (21-1/4x21-1/4x48-3/16 inch) |
Net Weight | 70.0 kg (154.3 lb) |
