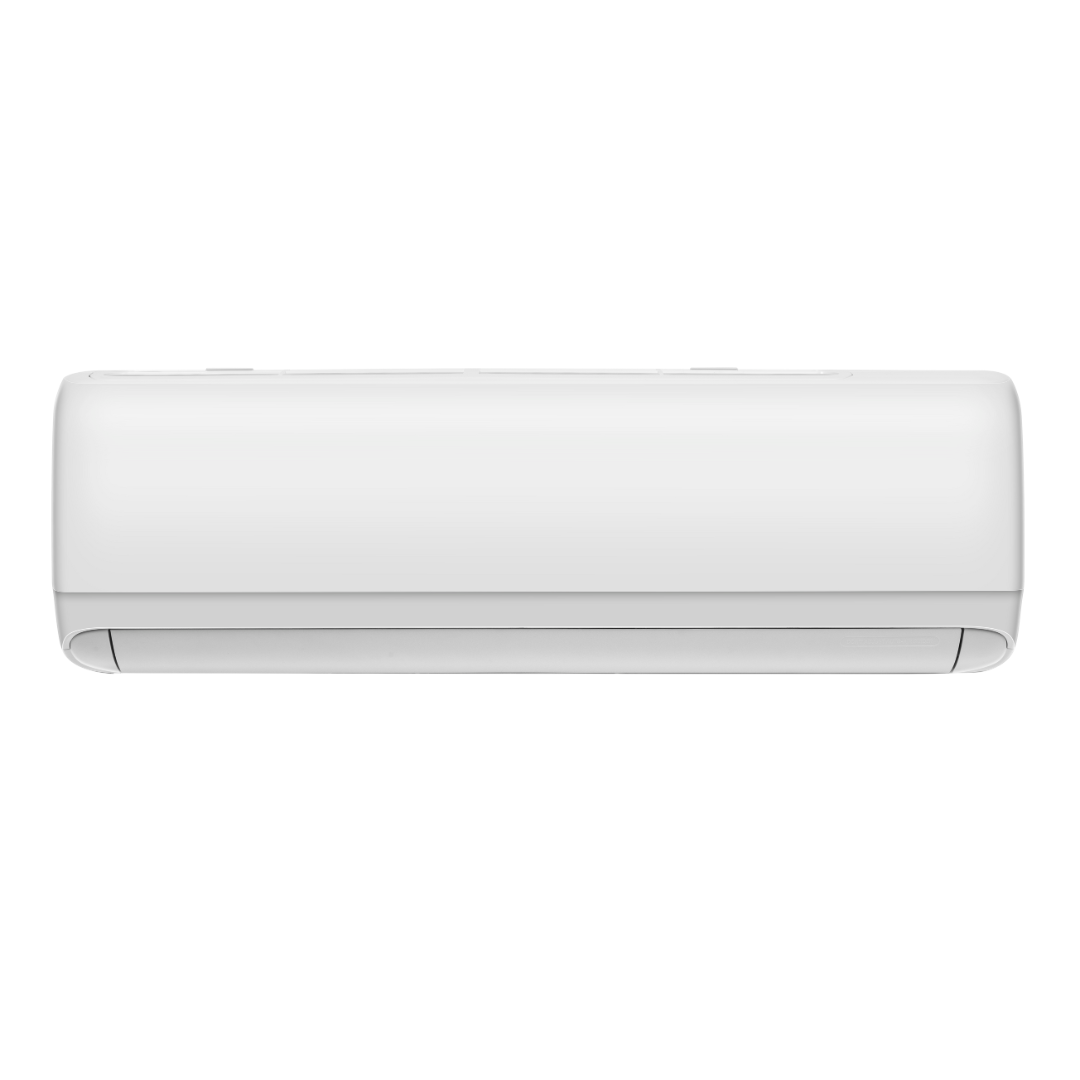

SUBMITTAL DATA CHARMO 19 SERIES: GWH24ATEXF-D3DNA3E/I
The Charmo Seriesâ Indulge in ultimate tranquility within your home with the all-new VITA heat pump. This compact, stylish, and elegant series is specifically designed to offer reliable and energy-efficient comfort for you and your family throughout the year.
Energy Efficiency
Home Comfort
Convenient Operation
Reliable Function
Warranty Coverage
Airtek/Gress proudly backs all their models with a robust manufacturer's warranty. This comprehensive warranty spans an impressive 10 years, safeguarding your investment. Rest assured, any warranty claims you may have will be efficiently handled by Airtek/Gress's, guaranteeing top-tier customer support and satisfaction. The 10-year warranty encompasses the compressor, while other parts enjoy coverage for 5 years. With this warranty, you can trust in the long-term protection of your purchase, ensuring you receive the utmost quality.
Item | Parameter |
---|---|
Voltage | 230/208 Volts |
Cooling Capacity | Unit |
Nominal | 6450 W |
Min. - Max. | 2000 - 7400 W (6824 - 25249 BTU/hr) |
Heating Capacity | Unit |
Nominal | 7040 W |
Min. - Max. | 1750 - 8000 W (5971 - 27296 BTU/hr) |
Used Cooling Power Input | Nominal 1896 W |
Min. - Max. | 340 - 2350 W |
Used Heating Power Input | Nominal 2051 W |
Min. - Max. | 370 - 2400 W |
Used Rated Input | 2400 W |
Rated Current | 12 A |
MCA | 15 A |
Max. Over-Current Protection (MOCP) | 20 A |
Energy Efficiency | Unit |
SEER2 (SEER) | 18 (18) |
HSPF2 (HSPF) | 8.5 (10) |
EER | 3.4 W/W |
COP | 3.43 W/W |
AHRI Number | 209248932 |
ENERGY STAR | |
Indoor Unit | |
Dehumidification | 5.28 (2.50) pt/hr (l/hr) |
Air Flow Volume | 677 / 588 / 559 / 500 cfm 471 / 441 / 412 cfm |
Sound Level | 61 / 57 / 55 / 52 dB (A) 50 / 48 / 46 dB (A) |
Fan Motor Power Output | 60 W |
Fan Motor RLA | 0.45 A |
Deflector Stepper Motor Power Output | 2.5 W |
Net Weight | 33 lb (18 kg) |
Outdoor Unit | |
Air Flow Volume | 3200 m3/hr |
Sound Level | 57 dB (A) |
Compressor Power Input | 1330 W |
Compressor LRA | 35 A |
Compressor RLA | 10.45 A |
Fan Motor Power Output | 60 W |
Fan Motor RLA | 0.6 A |
Refrigerant Volume (R410A) | 52.9 oz (1500 g) |
Net Weight | 97 lb (44 kg) |
Operating Ambient Temperature | |
Cooling | |
Heating | |
Connection Piping/Refrigerant | |
Pre-charge Length | 25 ft. (7.5 m) |
Additional Refrigerant Charge | 0.5 oz/ft. (50 g/m) |
Liquid Pipe Outer Diameter | 44930 in. |
Gas Pipe Outer Diameter | 45054 in. |
Maximum Height Difference | 82 ft. (25 m) |
Maximum Total Length | 82 ft. (25 m) |
