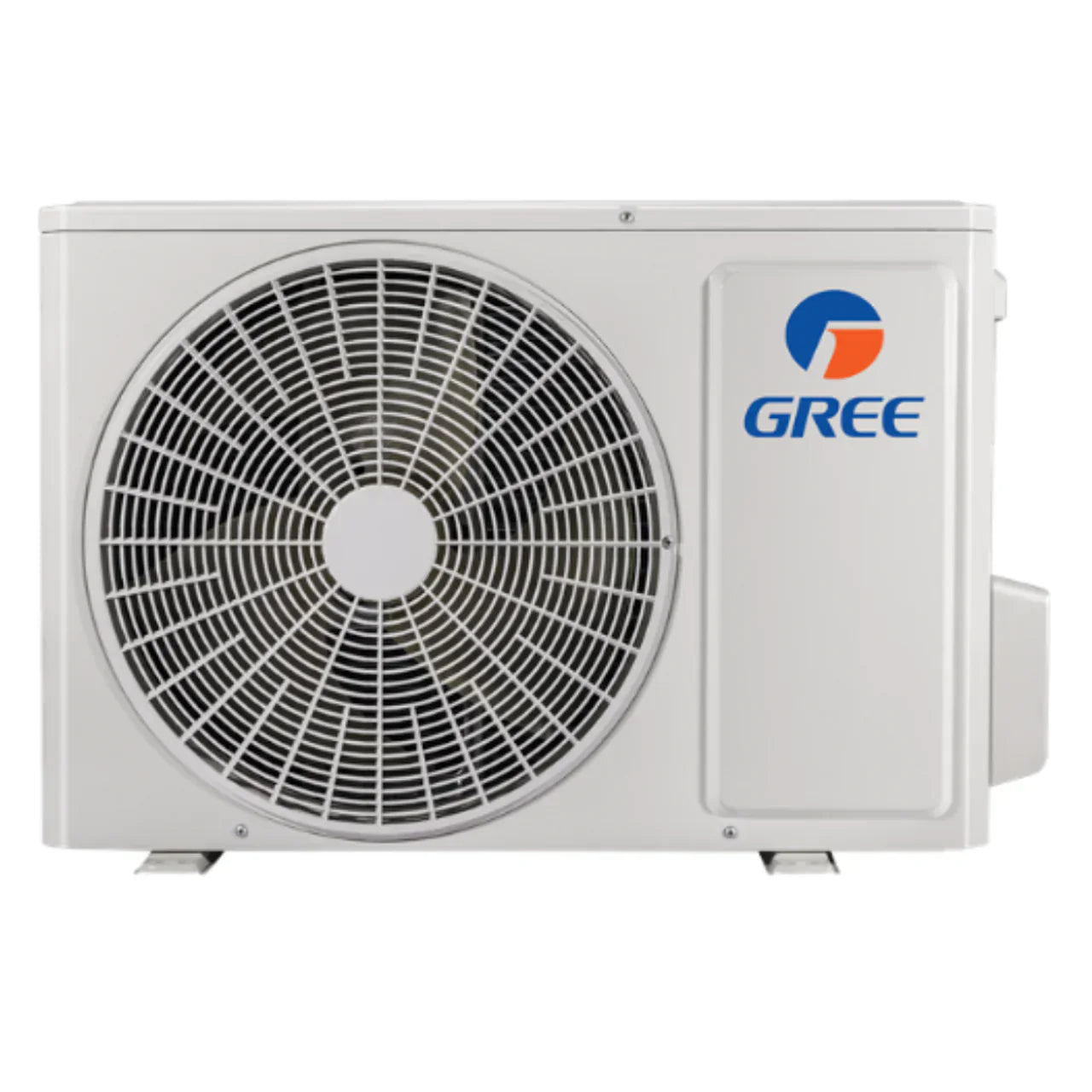

GREE, CHARMO19, 19 SEER, Inverter Heat Pump, 24KBTU, 208/1/60, ODU, GWH24QEXF-D3DNC4C/O(LCLH)

SUBMITTAL DATA CHARMO 19 SERIES: GWH24QEXF-D3DNC4C/O(LCLH) The Charmo Series—Indulge in ultimate tranquility within your home with the...
Vendor: Gree
SKU: GWH24QEXF-D3DNC4C/O(LCLH)
Availability: Out Of Stock
Please login to see the price
$1,354.00
$1,354.00
Please hurry! Only 0 left in stock
10 customers are viewing this product

SUBMITTAL DATA CHARMO 19 SERIES: GWH24QEXF-D3DNC4C/O(LCLH)

The Charmo Series—Indulge in ultimate tranquility within your home with the all-new VITA heat pump. This compact, stylish, and elegant series is specifically designed to offer reliable and energy-efficient comfort for you and your family throughout the year.

Energy Efficiency

  • The highlight feature of the Charmo Series is the integration of G10 Inverter Technology, which guarantees swift attainment of your desired ambient temperature while minimizing energy usage.
  • Contribute to a greener environment with the use of eco-friendly R410A refrigerant.



Home Comfort

  • Enjoy customizable airflow with multiple fan speed options.
  • Enhanced efficiency and noise reduction with a compressor blanket and preheating technology.



Convenient Operation

  • Take control with ease using the VITA's built-in smart WiFi functionality. By utilizing the GREE+ app, you can conveniently operate your equipment from your cell phone or tablet, no matter where you are, as long as you have WiFi access. Stay connected and experience the convenience of smart control with the VITA series.
  • Easily adjust settings with the adjustable LED display for added convenience.
  • Maintain clean and fresh air with washable dust filters that are easy to clean and maintain.



Reliable Function

  • Benefit from a durable and robust construction with the heavy gauge steel cabinet.
  • Experience hassle-free start-up with low voltage capability.
  • Benefit from enhanced corrosion resistance with fins coated in an anti-corrosion layer.



Warranty Coverage

Airtek/Gress proudly backs all their models with a robust manufacturer's warranty. This comprehensive warranty spans an impressive 10 years, safeguarding your investment. Rest assured, any warranty claims you may have will be efficiently handled by Airtek/Gress's, guaranteeing top-tier customer support and satisfaction. The 10-year warranty encompasses the compressor, while other parts enjoy coverage for 5 years. With this warranty, you can trust in the long-term protection of your purchase, ensuring you receive the utmost quality.

Technical Specifications

SPECIFICATIONS GWH24QE-D3DND6L/I
System Type HEAT PUMP
SYSTEM PERFORMANCE
Min - Max 6824 - 25249 Btu/h
Cooling
Min - Max 5971 - 27296 Btu/h
Capacity @95°F 22000 Btu/h
Capacity @5°F Btu/h
Heating
Capacity @17'F 13900 Btu/h
Capacity @47°F 24000 W
SEER2 18.0
EER2 11.6
HSPF/HSPF2 10/8.5
COP @5°F
COP @47°F 3.4
Cooling Temperature Range 0 - 122 °F
Heating Temperature Range -13 - 75 °F
Refrigerant Type R410A
INDOOR UNIT GWH24QE-D3DND6L/I
Air flow (Min-Max) 412-677 CFM
Sound Pressure Level (Min - Max) 36 - 51 dB(A)
Dehumidification 5.28 pt/hr
External Dimensions (WxHxD) 42-7/16 x 13-1/8 x 9-11/16 in
Package Dimension (WxHxD) 44-5/8 x 16-5/16 x 13-1/8 in
Net Weight 33.1 lbs
Gross Weight 39.7 lbs
OUTDOOR UNIT GWH24YE-D3DNA1A/O
Compressor Type GREE G-10 / 2-STAGE INVERTER
Sound Pressure Level 57 dB(A)
External Dimensions (W x H x D) 37-3/4 x 26 x 15-7/8 in
Package Dimension (WxHxD) 40-5/8 x 29-1/16 x 17-15/16 in
Net Weight 97 lbs
Gross Weight 106.9 lbs
REFRIGERANT PIPING
Refrigerant Charge - R410A 52.9 OZ
Additional Charge 0.5 oz/ft
Line Set Size (Liquid - Gas) - Flared Connections 1/4-5/8 in
Pre-Charge Length 25 ft
Pipe Length (Min - Max) 10 - 82 ft
Max. Pipe Elevation 33 ft
ELECTRICAL
Power Supply 208-230V/1Ph/60Hz
Voltage Range (Min - Max) 187 - 253 VAC
Rated Current - Cooling 12 A
Rated Current - Heating 12 A
MCA 15A
MOCP 20 A
Suggested Breaker Size 15 A
Main Power Wire Size Per Local Code AWG
Interconnecting Wire Size 14/4 AWG



Documentations and Certifications

Charmo 19 Series Brochure

Charmo 19 Series Owner's Manual

SPECIFICATIONS GWH24QE-D3DND6L/I
System Type HEAT PUMP
SYSTEM PERFORMANCE
Min - Max 6824 - 25249 Btu/h
Cooling
Min - Max 5971 - 27296 Btu/h
Capacity @95°F 22000 Btu/h
Capacity @5°F Btu/h
Heating
Capacity @17'F 13900 Btu/h
Capacity @47°F 24000 W
SEER2 18.0
EER2 11.6
HSPF/HSPF2 10/8.5
COP @5°F
COP @47°F 3.4
Cooling Temperature Range 0 - 122 °F
Heating Temperature Range -13 - 75 °F
Refrigerant Type R410A
INDOOR UNIT GWH24QE-D3DND6L/I
Air flow (Min-Max) 412-677 CFM
Sound Pressure Level (Min - Max) 36 - 51 dB(A)
Dehumidification 5.28 pt/hr
External Dimensions (WxHxD) 42-7/16 x 13-1/8 x 9-11/16 in
Package Dimension (WxHxD) 44-5/8 x 16-5/16 x 13-1/8 in
Net Weight 33.1 lbs
Gross Weight 39.7 lbs
OUTDOOR UNIT GWH24YE-D3DNA1A/O
Compressor Type GREE G-10 / 2-STAGE INVERTER
Sound Pressure Level 57 dB(A)
External Dimensions (W x H x D) 37-3/4 x 26 x 15-7/8 in
Package Dimension (WxHxD) 40-5/8 x 29-1/16 x 17-15/16 in
Net Weight 97 lbs
Gross Weight 106.9 lbs
REFRIGERANT PIPING
Refrigerant Charge - R410A 52.9 OZ
Additional Charge 0.5 oz/ft
Line Set Size (Liquid - Gas) - Flared Connections 1/4-5/8 in
Pre-Charge Length 25 ft
Pipe Length (Min - Max) 10 - 82 ft
Max. Pipe Elevation 33 ft
ELECTRICAL
Power Supply 208-230V/1Ph/60Hz
Voltage Range (Min - Max) 187 - 253 VAC
Rated Current - Cooling 12 A
Rated Current - Heating 12 A
MCA 15A
MOCP 20 A
Suggested Breaker Size 15 A
Main Power Wire Size Per Local Code AWG
Interconnecting Wire Size 14/4 AWG

Gree Error Codes

  • E1 - Compressor high pressure protection
  • E3 - Compressor low pressure protection
  • E4 - Compressor air discharge high-temperature protection
  • F2 - Condenser temperature sensor error
  • F3 - Outdoor ambient temperature sensor error
  • F4 - Discharge temperature sensor error
  • F6 - ODU tube temperature sensor error
  • EE - ODU memory chip error
  • H4 - Overload
  • H5 - IPM protection
  • H6 - DC fan error
  • H7 - Driver out-of-step protection
  • HC - Pfc protection
  • Lc - Startup failure
  • P0 - Driver reset protection
  • P5 - Over-current protection
  • P6 - Master control and driver communication error
  • P7 - Driver module sensor error
  • P8 - Driver module high temperature protection
  • PA - AC current protection
  • Pc - Driver current error
  • PL - Bus low-voltage protection
  • PH - Bus high-voltage protection
  • PU - Charge loop error
  • ee - Drive memory chip error
  • e1 - High pressure sensor error
  • C4 - ODU jumper cap error
