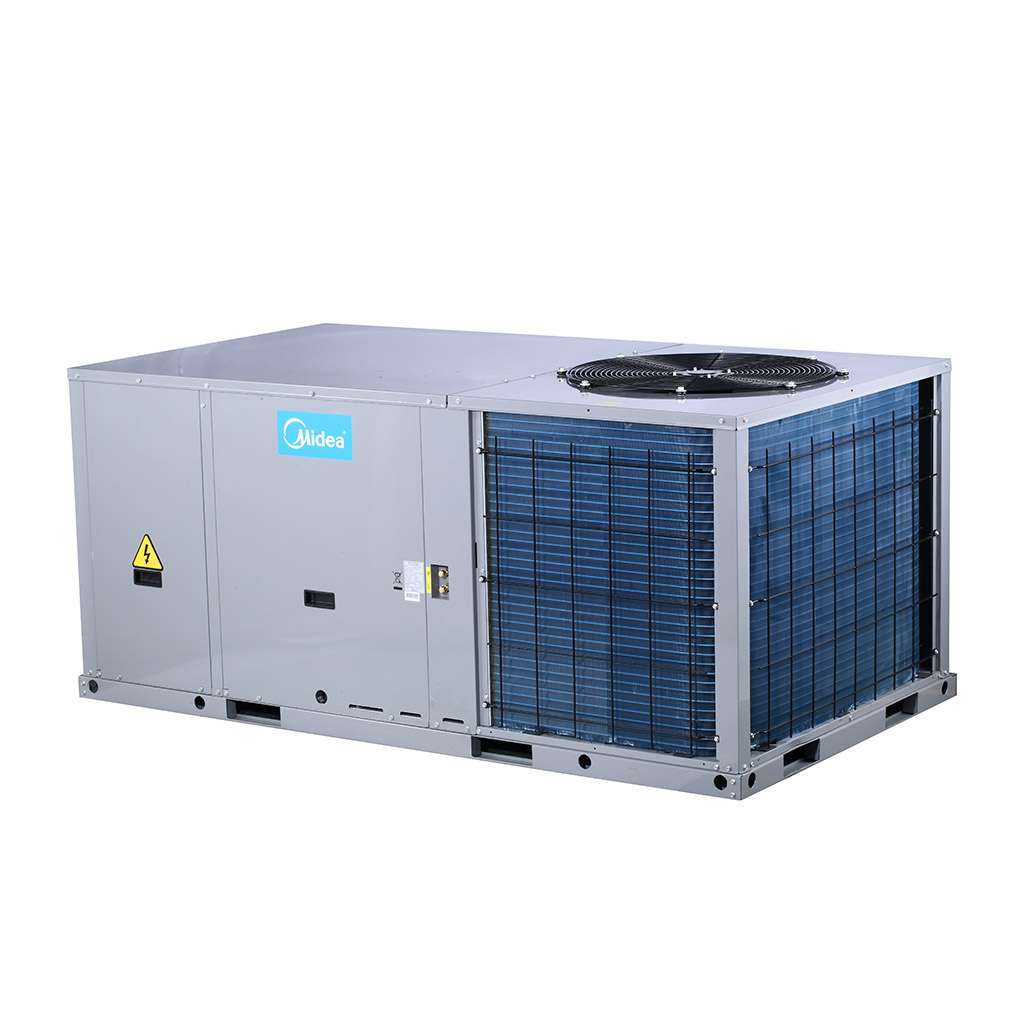

5-25TON Desert Series Cooling Only: MRCT-050-250CWN1-Y(D)
Designed for large halls, warehouses, and other applications, Midea's rooftop package air conditioners offer all-in-one solutions with a focus on design flexibility, durable construction, and customized anti-corrosion treatment. These units are perfect for installations on rooftops and the ground, providing reliable and efficient cooling even in desert or coastal areas exposed to extreme conditions.
Product Highlights
- Design Flexibility: Compact design with standard air flow inlet and outlet flanges, suitable for rooftop and ground installations.
- Durable Construction: Pre-painted exterior cabinet panels pass a 1000-hour Salt Spray Test. Weather-resistant construction with heavy gauge plates for enhanced durability.
- Customized Anti-corrosion Treatment: Special treatments make these units ideal for seaside areas or locations with acidic exposure.
- Multi-protection Design: Equipped with various protective measures including system current protection and high/low pressure switch protection for reliable operation.
| General | Specification |
|---|---|
| Type | Rooftop Packaged Unit |
| Power Supply | 3N~380-415V~60Hz |
| Capacity (kW) | 17.1~82.6 |
| Cooling Capacity (kBtu/h) | 58.5~282.0 |
| Air Flow (CFM) | 2000.0~10000.0 |
| External Static Pressure (Pa) | (0-225)~(0-300) |
| Ambient Temperature | 10°C-52°C |
| Net Dimensions (W√óH√óD)(mm) | (1920√ó840√ó1070)~(2885√ó1655√ó2230) |
| Packed Dimensions (W√óH√óD)(mm) | (1945√ó870√ó1085)~(2895√ó1690√ó2230) |
| Net/Gross Weight (kg) | (230/234)~(1180/1260) |
Documentation and Certifications
Midea Error Codes
- E3 - Combined water outlet temperature sensor error
- E4 - Water outlet temperature sensor error
- 1E5 - Air side heat exchanger refrigerant outlet temperature sensor T3A error
- E7 - Outdoor ambient temperature sensor error
- 2Eb - Water side heat exchanger anti-freezing temperature sensor Taf2 error
- 1Ed - Discharge pipe temperature sensor of system A error
- 2Ed - Discharge pipe temperature sensor of system B error
- EF - Water inlet temperature sensor error
- EP - Discharge pipe temperature sensor failure alarm
- EU - Air side heat exchanger refrigerant total outlet temperature sensor Tz/7 error
- 1F9 - Inverter module temperature sensor (Tfin1) error
- 2F9 - Inverter module temperature sensor (Tfin2) error
- Fb - Pressure sensor error
- Fd - Air suction temperature sensor error
- All stop running
- Error code is displayed on main PCB and user interface
