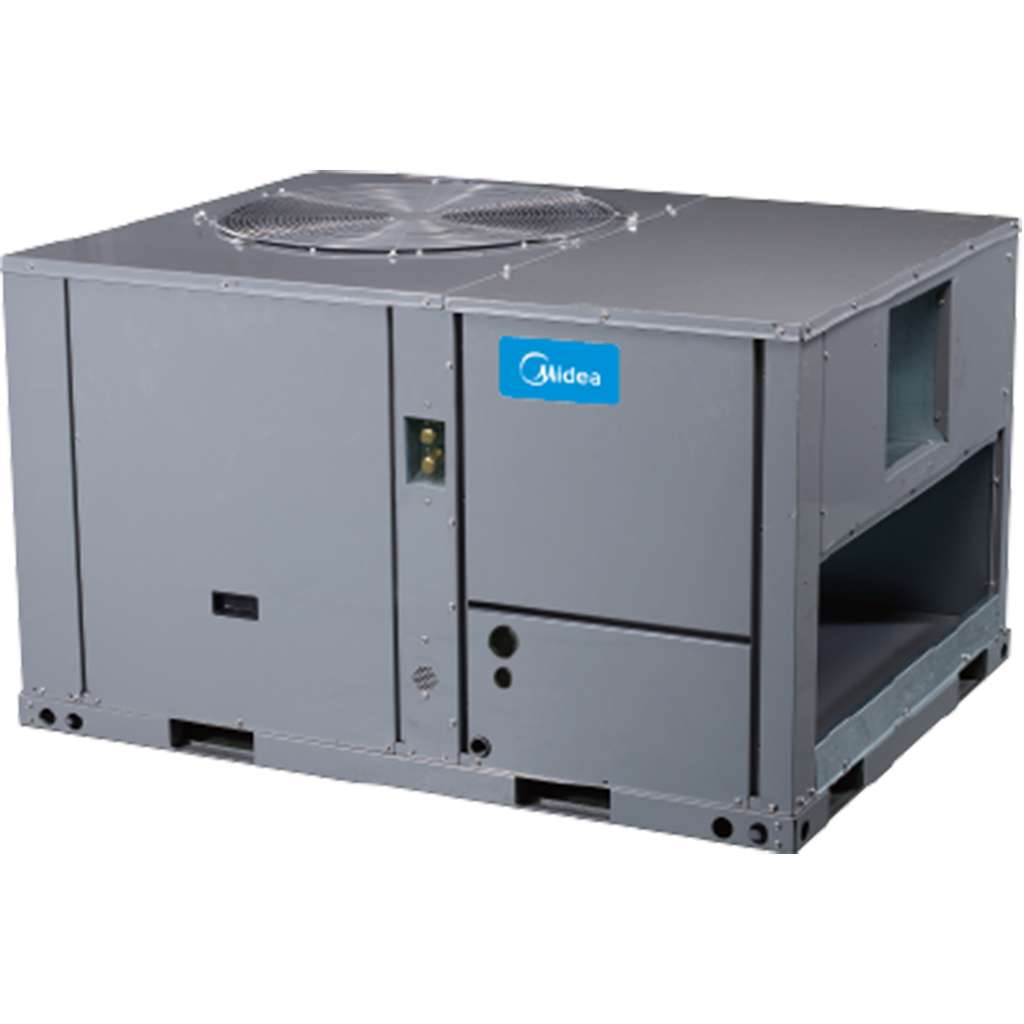

4-30TON ClimaCreator Series (50/60Hz) Cooling Only
Midea ClimaCreator Series rooftop package air conditioners offer all-in-one solutions for large halls, warehouses, or other applications. Designed and manufactured for convenience and efficiency, these units are the perfect choice for large buildings and applications.
Energy Efficiency
- Our products incorporate eco-friendly refrigerants, known for their exceptional energy efficiency and minimal impact on the ozone layer, promoting environmentally conscious cooling practices.

Home Comfort
- Designed for whisper-quiet operation, our units ensure a peaceful and serene home environment, providing minimal noise disruption during operation.
- The wide operating range of our home comfort system ensures optimal warmth and comfort throughout the colder months, efficiently heating your home across a wide range of temperatures.

Convenient Operation
- The flexible installation and durable construction of our units, along with optional electric heat kits, make for an easy setup and long-lasting performance.

Reliable Function
- Our rooftop units come with multi-protection designs and customized anti-corrosion treatments, suitable for seaside areas or areas exposed to acidic substances.

Warranty Coverage
Airtek/Gress proudly backs all their models with a robust manufacturer's warranty, guaranteeing top-tier customer support and satisfaction.
| Item | Parameter |
|---|---|
| Model | MRCT-48-300CWN1-R(C), MRCT-085-100CWN1-R(D), MRCT-075-250CWN1-D(C) |
| Power Supply | (3Ph~380-415V~50HZ)~(3Ph~380-415V~50HZ) |
| Cooling Capacity | 14.1~105.0 kW |
| Air Flow | 1750.0~12000.0 CFM |
| External Static Pressure | (0-200)~(125-450) Pa |
| Ambient Temperature | 10°C-52°C |
| Net Dimensions (W√óH√óD) | (1310x840x900)~(2320√ó1245√ó2220) mm |
| Packed Dimensions (W√óH√óD) | (1340x865x935)~(2330√ó1275√ó2230) mm |
| Net/Gross Weight | (167/170)~(910/940) kg |
Documentation and Certifications
Midea Error Codes
- E3 - Combined water outlet temperature sensor error
- E4 - Water outlet temperature sensor error
- 1E5 - Air side heat exchanger refrigerant outlet temperature sensor T3A error
- E7 - Outdoor ambient temperature sensor error
- 2Eb - Water side heat exchanger anti-freezing temperature sensor Taf2 error
- 1Ed - Discharge pipe temperature sensor of system A error
- 2Ed - Discharge pipe temperature sensor of system B error
- EF - Water inlet temperature sensor error
- EP - Discharge pipe temperature sensor failure alarm
- EU - Air side heat exchanger refrigerant total outlet temperature sensor Tz/7 error
- 1F9 - Inverter module temperature sensor (Tfin1) error
- 2F9 - Inverter module temperature sensor (Tfin2) error
- Fb - Pressure sensor error
- Fd - Air suction temperature sensor error
- All stop running
- Error code is displayed on main PCB and user interface
Error Documentation
